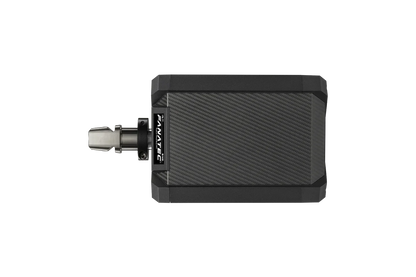

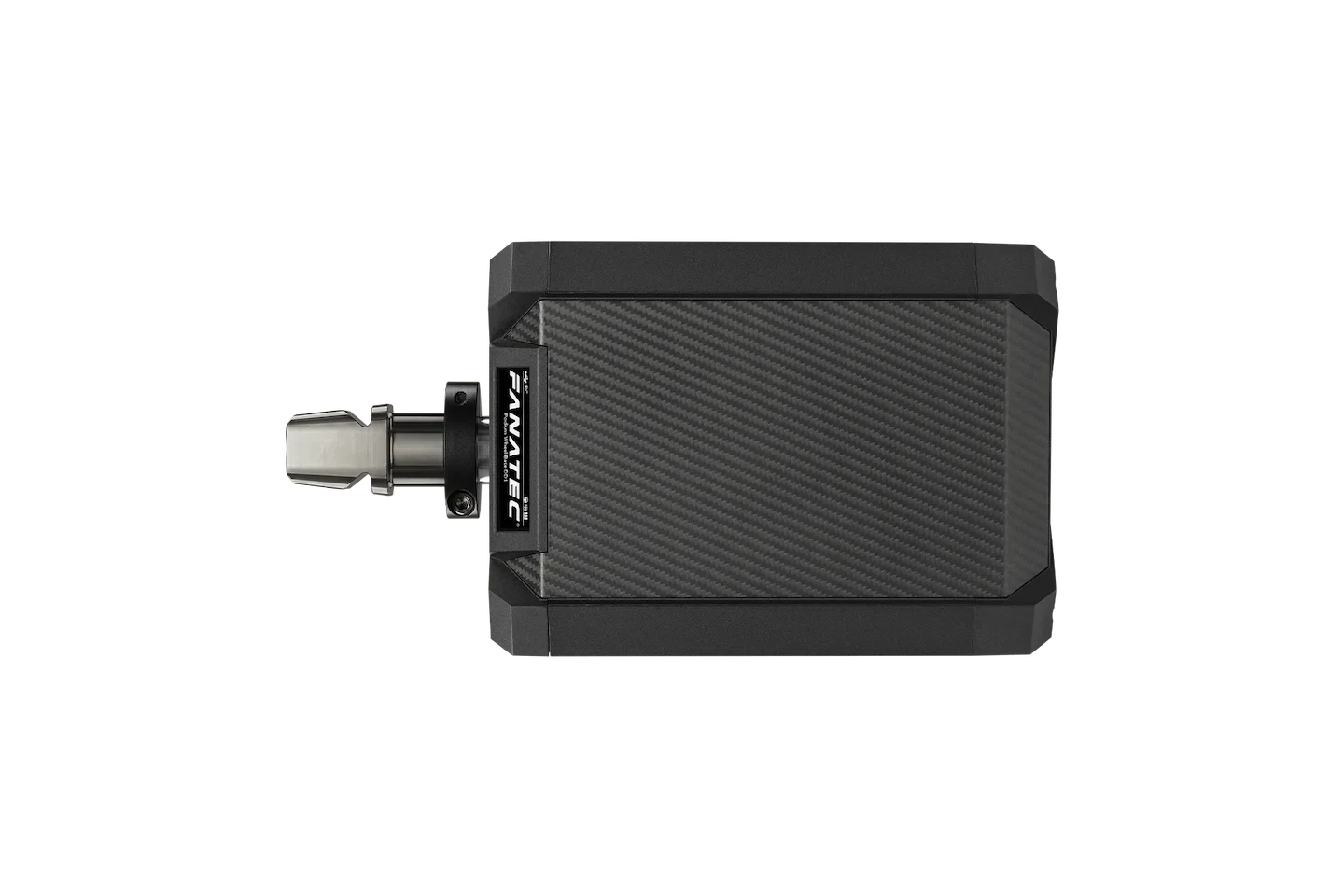

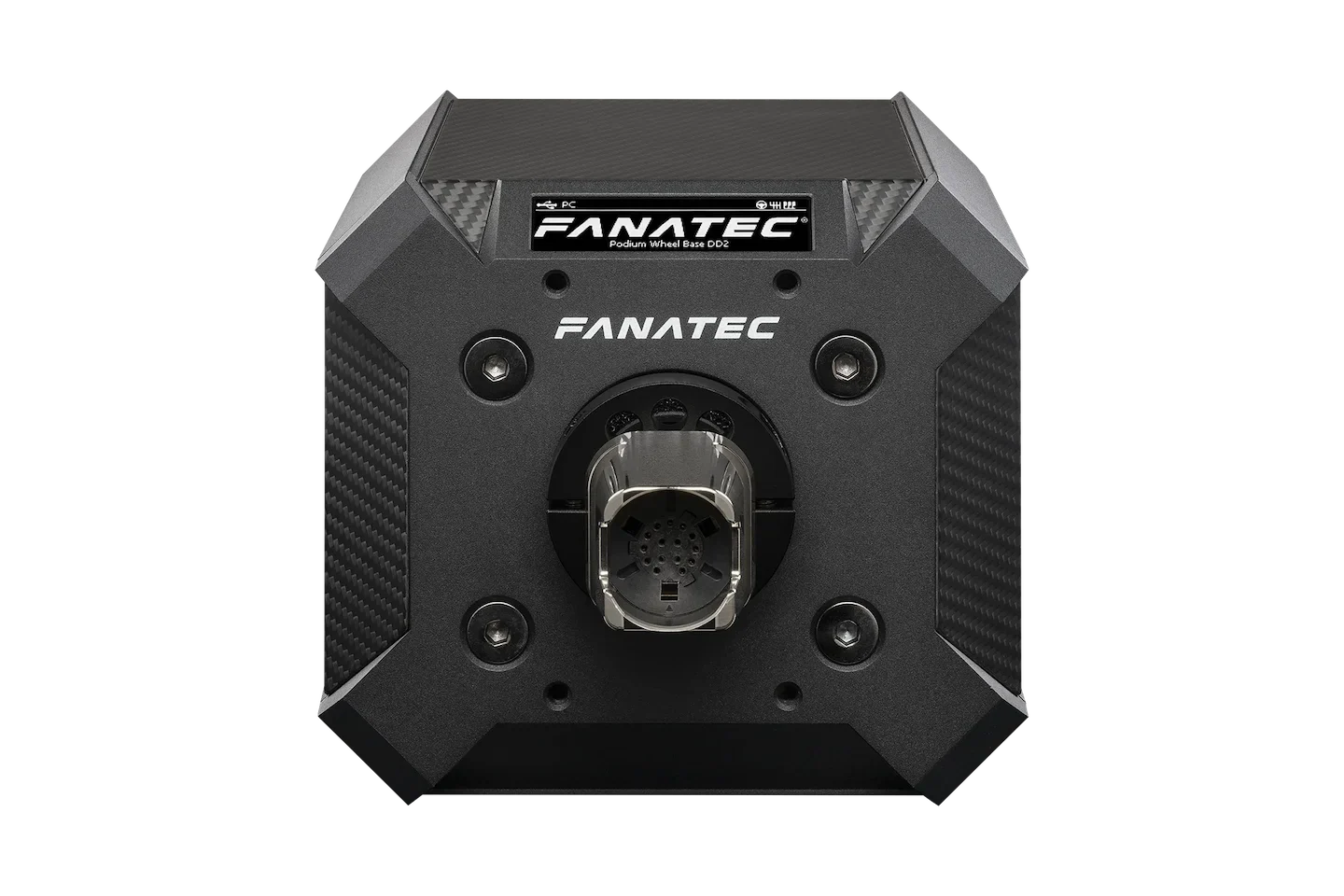

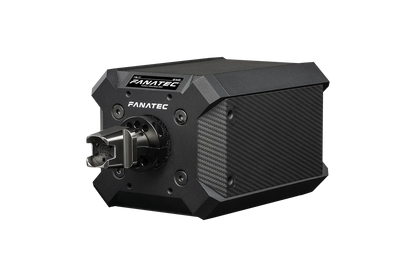

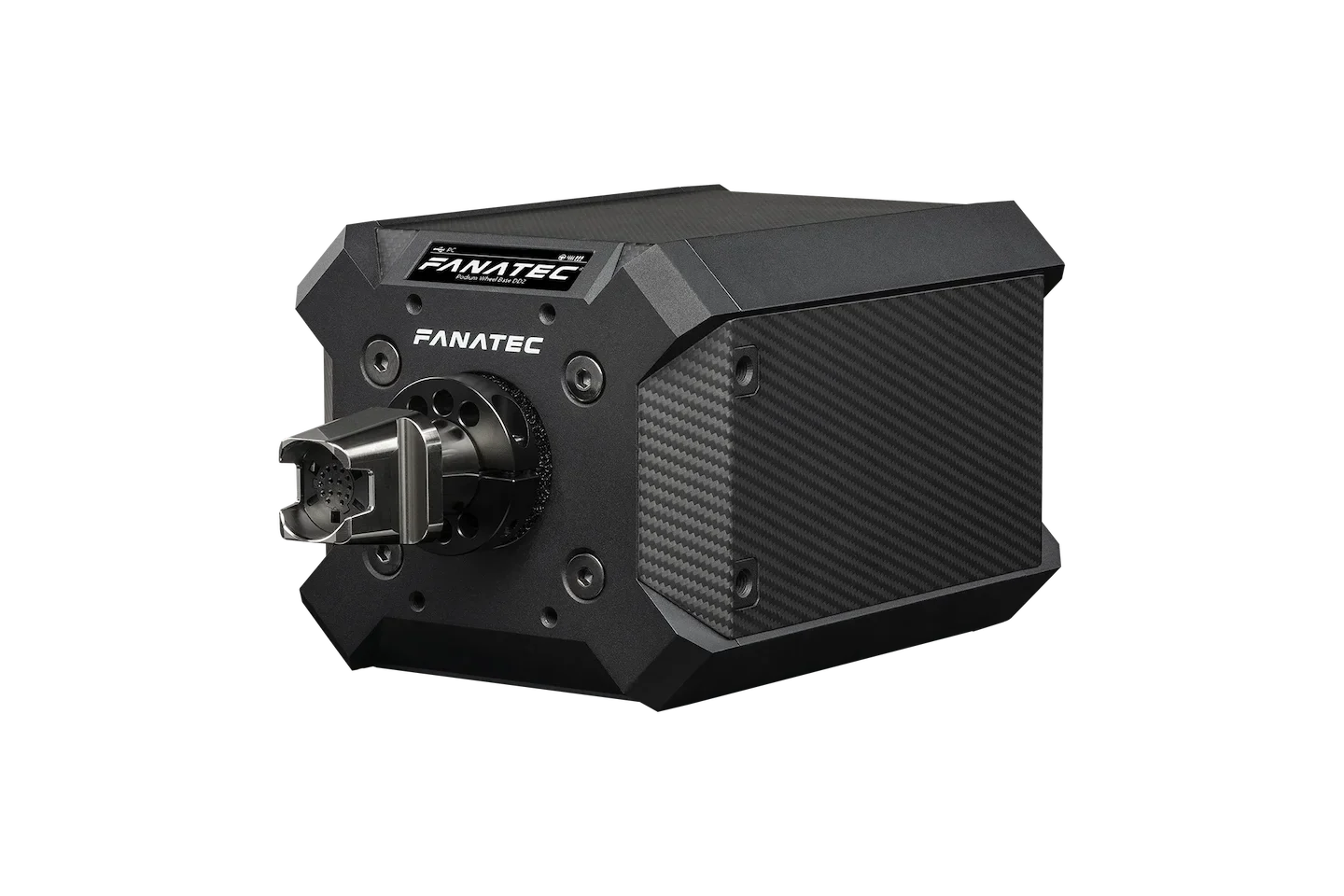

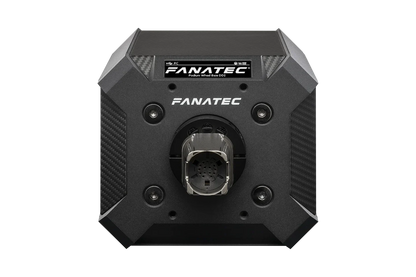

FANATEC PODIUM WHEEL BASE DD2 QR2 US

• Custom-designed servo motor designed by our engineers and the first direct drive motor optimised for racing simulator applications.
• Outrunner-type motor achieves outstanding peak torque of 25Nm, matching the torque output in most real race cars using power steering.
• Motor acceleration and speed remains at the highest level, even with heavy steering wheels.
• Ultra-low torque ripple ensures minimal mechanical distractions and the same smooth experience as in a belt driven wheel.
• Wireless QR technology: Wireless transfer of data (infra-red) and power (inductive coupling) between the motor and quick release means no external cables between wheel base and steering wheel, and no need for batteries inside the wheel.
• Rotation: 2520 degrees (electronically limited, adjustable).
• Integrated 2.7” 256x64 resolution OLED display for Tuning Menu, real-time motor and force feedback data, and Intelligent Telemetry Mode (FanaLabsoftware required).
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• Support for advanced dual clutch bite-point mode
• Integrated electronics within wheel base housing, no external control box required.
• The integrated electronics and highest quality components ensure ultra-low latency, providing immediate feedback from racing simulators.
• Fully certified with CE, FCC, C-Tick, ROHS and all other certificates required by law, ensuring that this product does not interfere with other electronic devices.
• Torque Key allows user to lock/unlock the DD2’s full performance.
• All existing and upcoming Fanatec peripherals fully supported. Choose from a growing selection of Fanatec steering wheels in many different styles and price/quality levels.

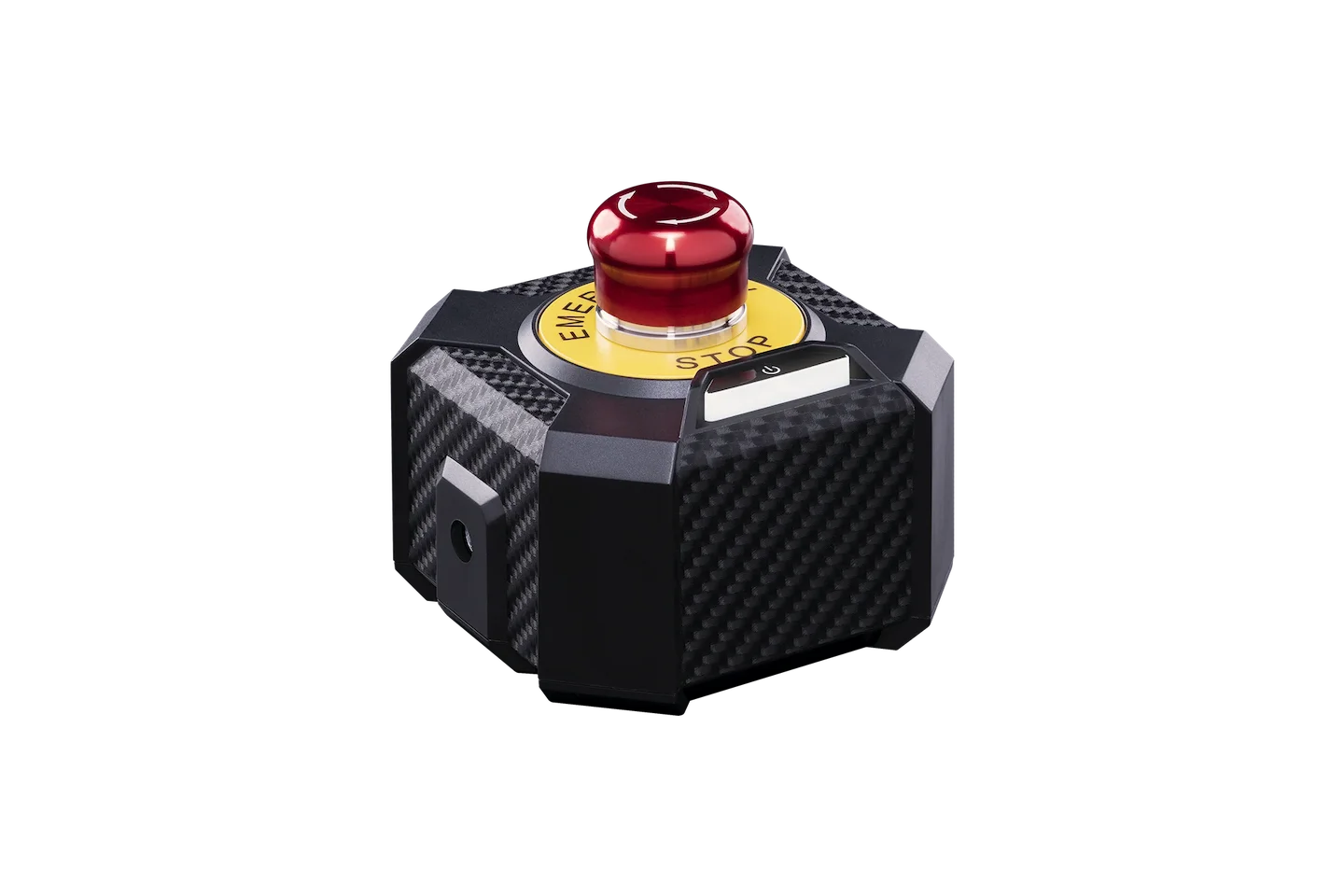

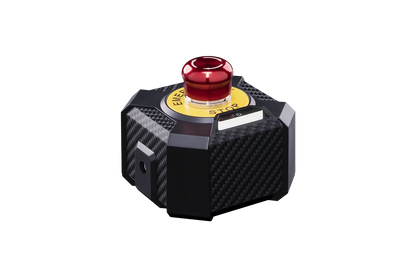

• Killswitch allows instant shut down of the DD2 in the event of an emergency. It also features a remote power button, and universal mounting points for ease of access.
• Firmware can be updated with new features
• Fast 1000 Hz USB update rate
• Allows connection of two external shifters (e.g. H-pattern and sequential) in parallel
• Mount for ClubSport Static Shifter Paddles and other optional accessories • Connection ports for peripheral devices: USB, Power, Pedals, Shifter 1, Shifter 2, Handbrake
• All-Aluminium housing
• Exchangeable carbon fibre cover plates.
• Supports Fanatec 3-hole mounting pattern (bottom mounting) and side mounting. Hard mounting to a cockpit is highly recommended due the high amount of torque.
• Full Fanatec SDK support ensures game compatibility out of the box for all major racing games across all platforms.
• Combines with FanaLab software for PC.

-Connect external devices to network for displaying telemetry data like speed, lap times, brake temperatures, tachometers and more.
-Support for major PC racing simulators
-Control your Upgraded Fanatec Tuning Menu settings and presets directly from the software.
-Save game-specific settings to PC software, which will be applied when the game is launched.
-New FFB tuning features, e.g. speed-sensitive dampening.

• Motorsport grade QR2 Base-Side (Type-M) preinstalled.


Compatibility

• All Fanatec Steering Wheels*
• All Fanatec Pedals (adapter cable might be required on pedals without RJ12 connection)
• All Fanatec Shifters
• All Fanatec Handbrakes
• All Fanatec Cockpits
• ClubSport Table Clamp V2

*Depending on the installed quick release. Some CSL wheels will be limited to Low Torque Mode, check the individual product pages for details.

Platforms:

• PC: This wheel base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
• Xbox®: This wheel base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed steering wheel.
• PlayStation®: This product is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.

Special Notes

• Not suitable for children.A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.

What's Included

• Podium Wheel Base DD2 with QR2 Base-Side preinstalled
• Kill Switch with Remote Power Button
• Torque Key
• Power supply
• USB cable
