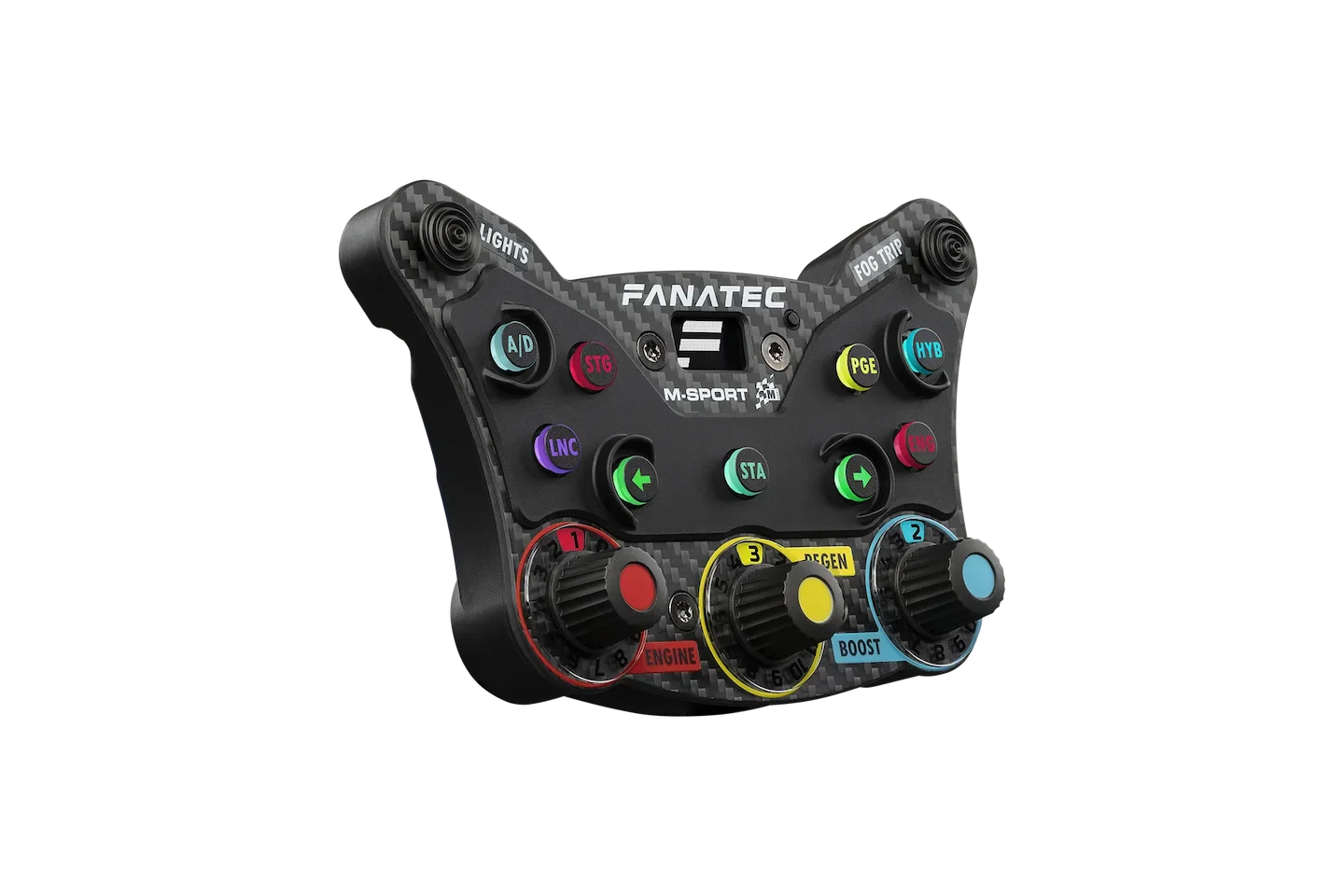

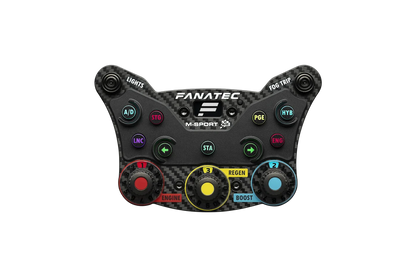

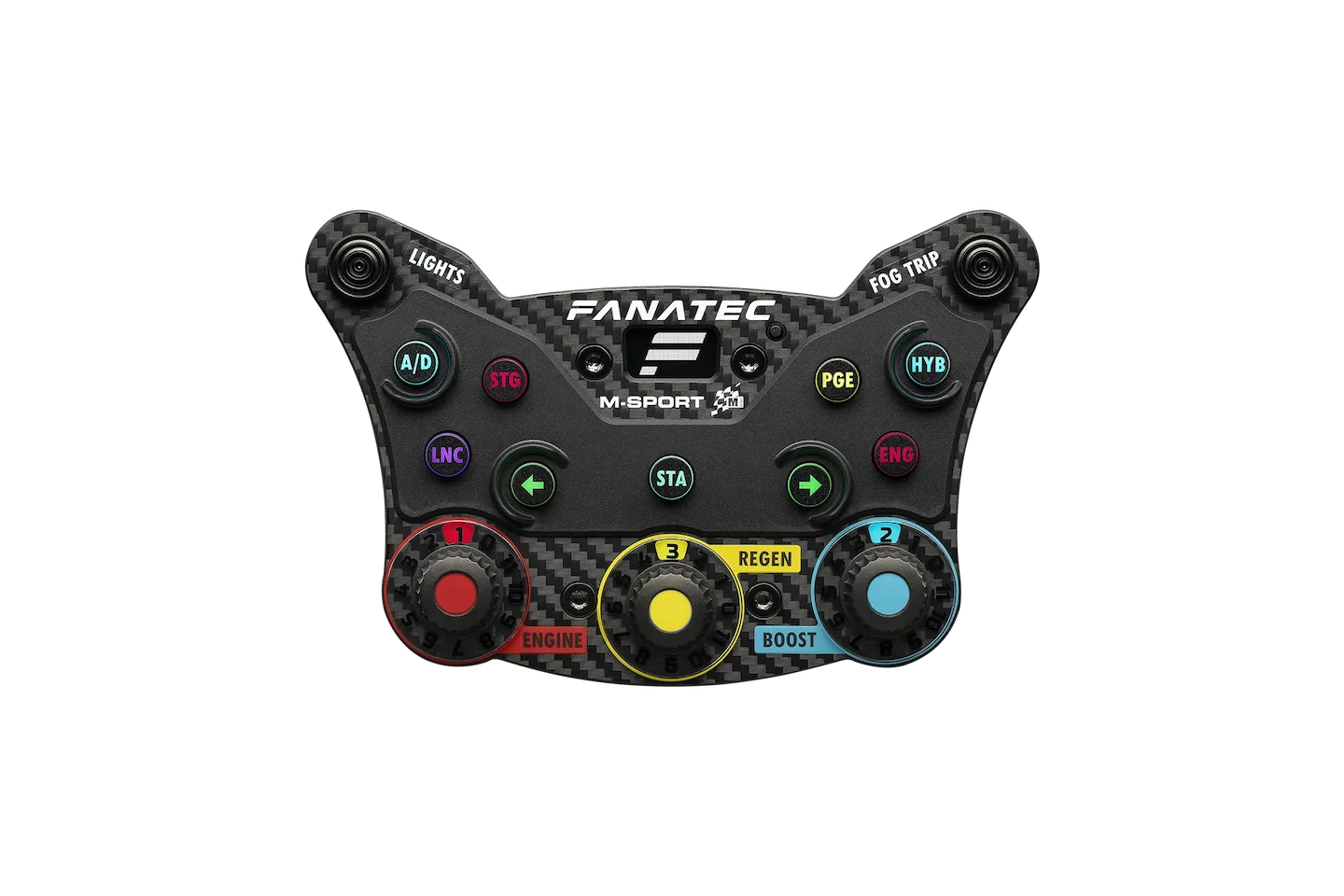

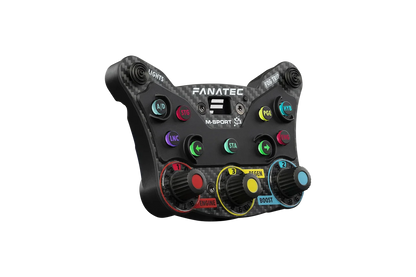

FANATEC PODIUM BUTTON MODULE RALLY

• Official M-Sport World Rally Team product
• Designed for the 2022 and 2023 Ford Puma Hybrid Rally1 WRC cars
• Compact, lightweight, durable body
• Ergonomically optimised for operation during rally stages
• Tested under the most demanding temperatures and conditions
• Carbon fibre front plate
• 280g including adapter ring
• Nine buttons with 600g activation force
• RGB LED-backlit (colour-adjustable and dimmable)
• Interchangeable button inserts
• Two D-pads placed in the primary position (nearest the thumbs), activation force optimised for quick and reliable access to multiple functions
• Three 12-way multi-position switches
• RGB LED-backlit (colour-adjustable and dimmable via FanaLab)
• Multi-position modes and rotary encoder option
• Included sticker set allows exact configuration used by M-Sport
• 1″ OLED display
• Shows telemetry data such as speed or gear, when supported through the Fanatec SDK
• Adjust force feedback and other hardware settings via Tuning Menu (in combination with Tuning Button and D-pad)
• Aluminium adapter ring (included) allows Podium Button Module Rally to be mounted to most wheel rims with standard six-hole pattern (6×70 mm)
• Wide compatibility with wheel rims due to front mounting
• Does not require longer bolts between wheel and hub, avoids flex in the steering system


Connects to Fanatec Hubs via DataPort-C connectorCompatible with Podium Hub and ClubSport Universal Hub V2 / V2 for Xbox

Compatibility

Wheel Bases:

• Podium Wheel Base DD1
• Podium Wheel Base DD2
• Podium Wheel Base DD1 PS4™
• ClubSport DD Wheel Base
• ClubSport DD+ Wheel Base
• CSL DD Wheel Base
• Gran Turismo DD Pro Wheel Base

Support for ClubSport Wheel Base V2.5, CSL Elite Wheel Base V1.1, and CSL Elite Wheel Base+ coming soon.

Hubs (required for operation):

• Podium Hub
• ClubSport Universal Hub V2
• ClubSport Universal Hub V2 for Xbox

Wheel Rims:

• Podium Wheel Rim Porsche 911 GT3 Cup (Suede)
• Podium Wheel Rim Porsche 911 GT3 Cup (Leather)
• Podium Wheel Rim R300
• ClubSport Wheel Rim R330
• ClubSport Wheel Rim 320
• ClubSport Wheel Rim 320 Alcantara®
• ClubSport Wheel Rim GT
• ClubSport Wheel Rim GT Alcantara®
• ClubSport Wheel Rim GT Forza Motorsport
• ClubSport Wheel Rim SPARCO® GT
• ClubSport Wheel Rim SPARCO® Rally
• ClubSport Wheel Rim SPARCO® Formula
• SPARCO® R383

Platforms

• PC: this product is compatible with Windows PC. Full functionality is game-dependent and subject to developer support.
• Xbox: this product is compatible with Xbox One and Xbox Series X|S when connected to the ClubSport Universal Hub V2 for Xbox. The functionality of this product on Xbox can be limited by the capabilities of the console (subject to firmware/OS changes and developer support).
• PlayStation: this product is compatible with PlayStation 4 and PlayStation 5 when used with PlayStation-licensed Wheel Bases. The functionality of this product on PlayStation can be limited by the capabilities of the console (subject to firmware/OS changes and developer support).

Special Notes

• The Podium Button Module Rally must be connected to a compatible Fanatec Hub for operation with a Fanatec Wheel Base.
• This product is only suitable for wheel rims with a 6x70mm hole pattern.
• If you wish to use this product with a third-party wheel rim, please check the sizing template in the Downloads section.

What's Included?

• Podium Button Module Rally
• Adapter ring
• Sticker set
• Extra button inserts
• 4x Torx bolts
• Torx key (T20)
• Tweezers
• 1x Quick Guide
