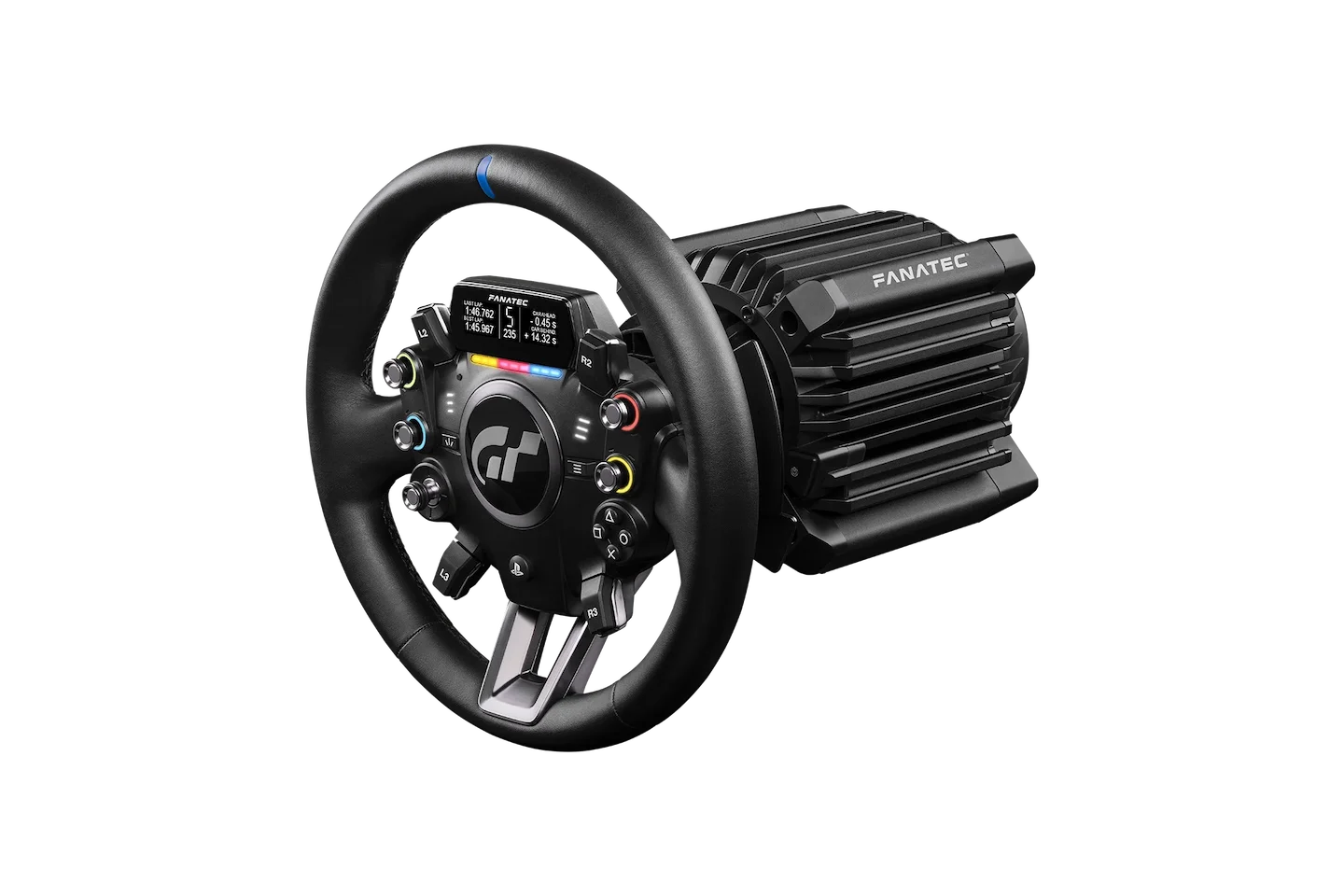

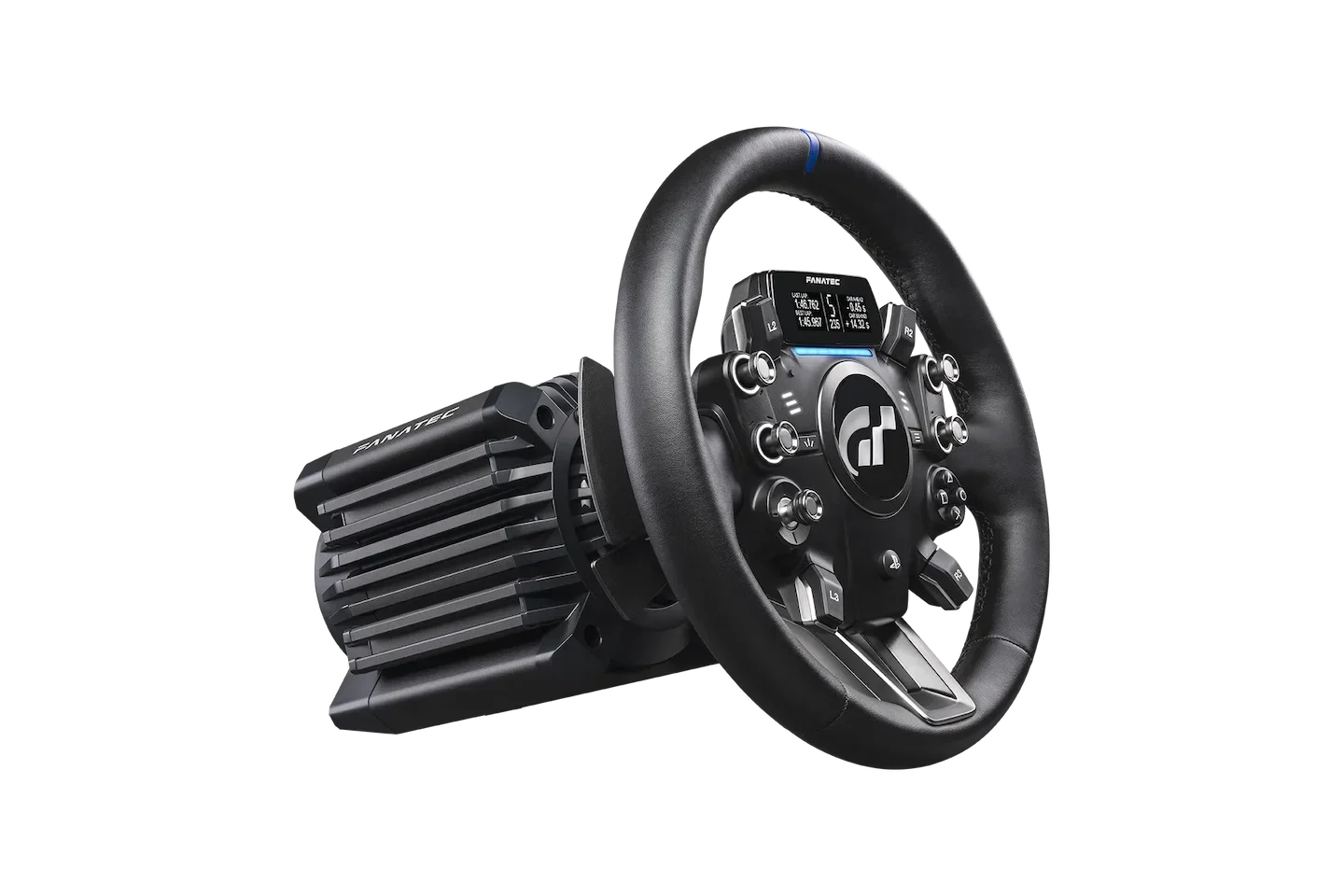

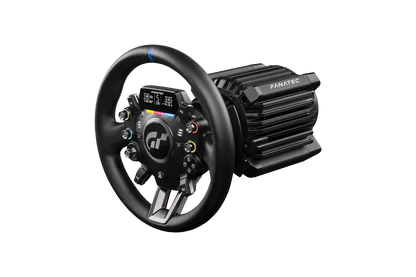

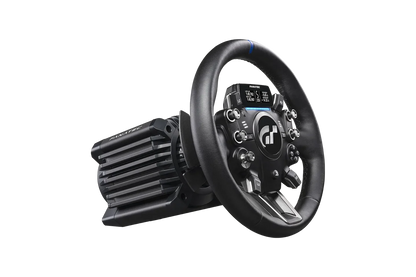

FANATEC GRAN TURISMO DD XTREME RACING WHEEL US

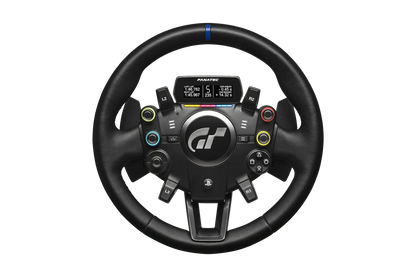

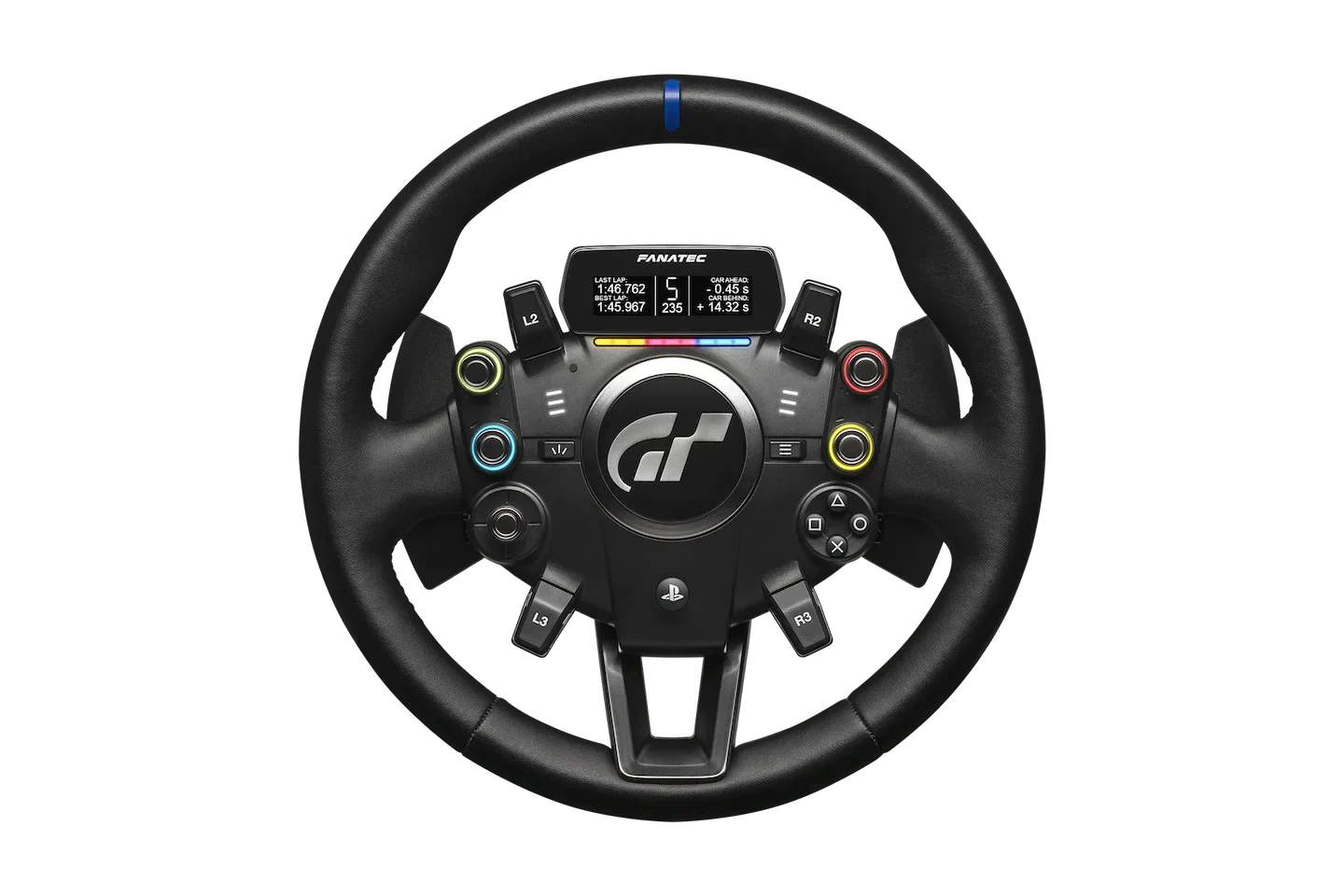

Steering Wheel for Gran Turismo® DD Extreme:

• Designed in collaboration with Polyphony Digital
• Officially licensed for PlayStation®5 (compatibility is achieved via the Wheel Base)
• Premium vegan leather grip gives it the look and feel of a GT road car
• 300 mm diameter is suitable for many different vehicles
• 2.7” OLED display for Tuning Menu access and Intelligent Telemetry Mode (where supported)
• 19 RGB LEDs (programmable on PC with FanaLab)Diffused RGB RevLED stripRGB FlagLEDsRGB LED rings around the directional sticks
• 7-way FunkySwitch: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Four 5-way directional sticks designed for Gran Turismo®
• Magnetic shifter paddles for superior tactile response3 mm-thick, black anodised aluminium paddle platesNeodymium magnets
• Two analogue clutch paddles with four switchable modes:Clutch bite-point mode (standard/advanced)Clutch/handbrake modeBrake/throttle mode (allows driving without pedals connected)Mappable axis mode
• 11 buttons optimised for the PlayStation® interface
• Designed for QR2 from the ground upPrecision fit means you feel all the detail of FullForce technology

ClubSport DD+ Wheel Base:

• Officially licensed for PlayStation®5 consoles and PlayStation®4 consoles
• Direct Drive servo motorCustom-designed in Germany for the ClubSport DD+ specifically for sim racing15 Nm consistent torqueOptimised skew angle on rotor magnets reduces cogging torquePatented, exclusive FluxBarrier technology improves motor efficiency and smoothness
• FullForce technologyNew force feedback protocol developed for Fanatec Direct DriveSuper low-latency detail effects through fine motor frequency control
• Passively cooled Wheel BaseMost thermally stable Wheel Base in its classConsistent performance under the most extreme conditions
• QR2Wheel Base optimised for QR2 from the ground-upElectronics module integrated with shaftDiecast aluminium with CNC-machined finishMotorsport-derived quick release systemQR1 downgrade possible (sold separately, coming soon)
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)
• Compatible with entire Fanatec ecosystem (see Compatibility section for details)
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Ports:Power supplyUSB-C to PC / consoleShifter 1Shifter 2 (Sequential only)PedalsHandbrakeCAN (for future Fanatec peripherals)
• Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

Compatibility

The ClubSport DD+ Wheel Base is compatible with:

• All Fanatec Steering Wheels (with QR2)
• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
• ClubSport Shifter (all versions)
• ClubSport Handbrake
• All Fanatec Cockpits
• ClubSport DD Table Clamp
• ClubSport Table Clamp V2
• Podium Mounting Brackets (the ClubSport DD+ Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Note: ClubSport Static Shifter Paddles are not supported.

The Steering Wheel for Gran Turismo® DD Extreme is only compatible with the ClubSport DD / ClubSport DD+ Wheel Bases at this time. Compatibility with other Wheel Bases is planned for a future firmware update.

Platforms

• This product is compatible with all PlayStation®4 consoles and PlayStation®5 consoles.
• This product is compatible with PC on all major racing games.
• Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

Special Notes

• Not suitable for children. The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
• The Steering Wheel for Gran Turismo DD Extreme has no torque limitation.
• The Gran Turismo® DD Extreme package supports all modern Fanatec pedals (sold separately).

What's Included?

• Steering Wheel for Gran Turismo® DD Extreme
• QR2 Lite Wheel-Side (preinstalled)
• ClubSport DD+ Wheel Base
• QR2 Base-Side (Type-F) (preinstalled)
• Power Supply (regional)
• 4x T-nuts for rail mount system
• USB cable (Type-C to Type-A)
• Quick Guide
