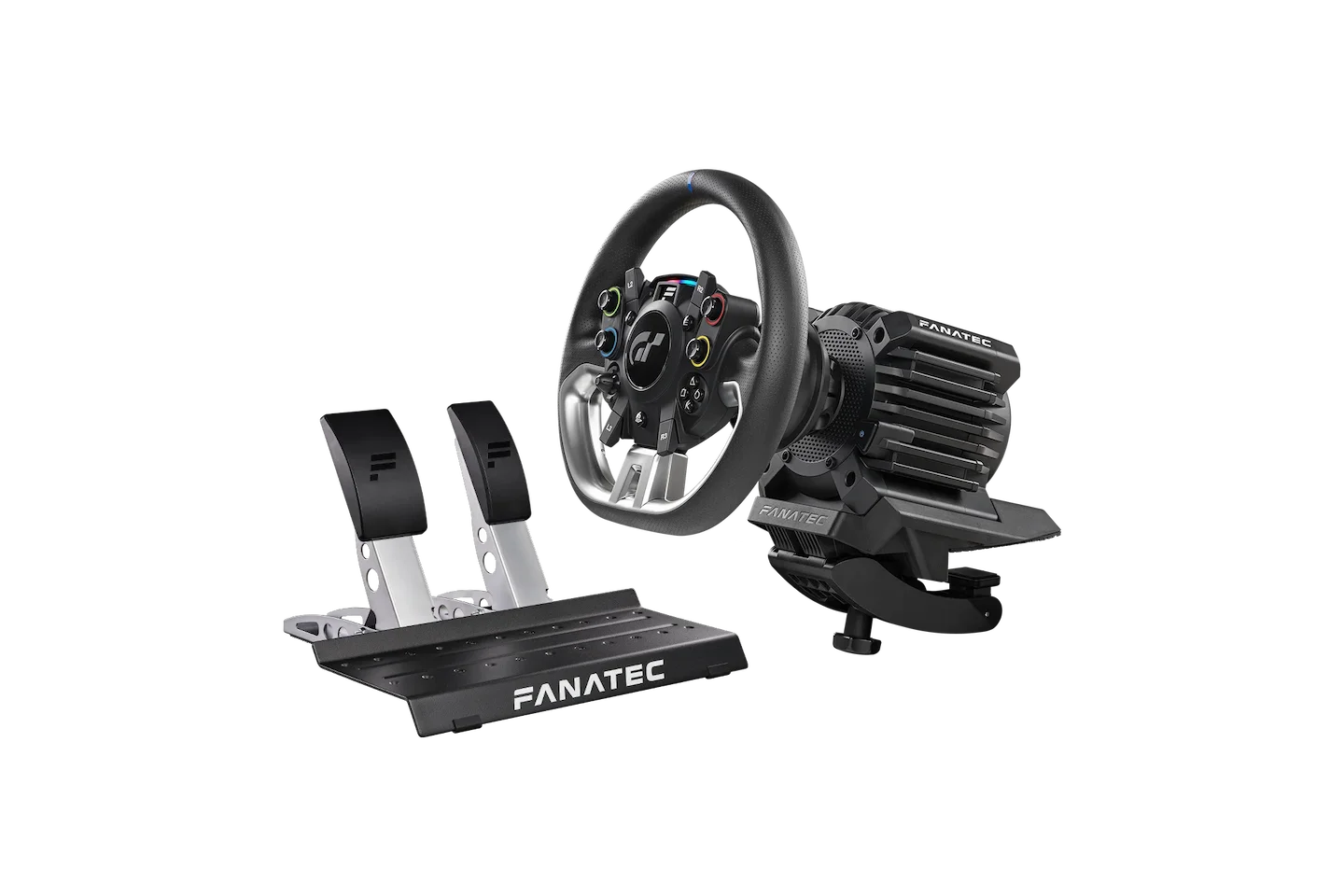

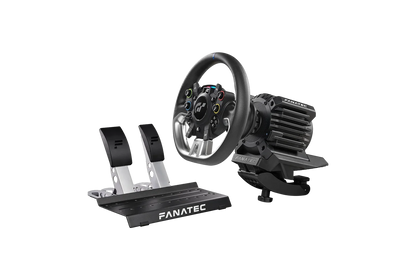

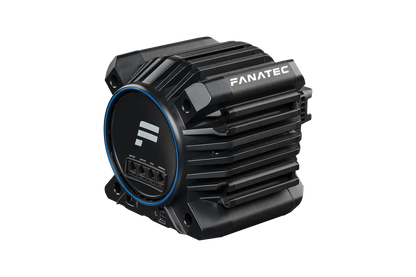

FANATEC GRAN TURISMO DD RACING WHEEL PRO with 90W PSU and QR2L (5NM)

• The official Direct Drive Wheel Base for Gran Turismo®
• Boost Kit 180 (included) unlocks maximum strength (8 Nm peak torque)
• Officially licensed for PS5® and PS4® consoles
• Direct-Drive system delivers instant, detailed force feedback
• Linear, consistent performance
• Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
• Full Fanatec SDK support ensures compatibility out of the box for all major racing games
• Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
• Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
• High-resolution (contactless) Hall-position-sensor, same as Podium DD1
• Steering axis made from carbon fibre-enhanced composite
• Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
• Rotation: 2520 degrees (electronically limited, adjustable)
• Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base
• QR2 quick release system

-Motorsport-derived quick release

-Tapered shape naturally ensures a tight fit

-Carbon fiber-reinforced polyamide construction

-Exchangeable

• Compatible with entire Fanatec ecosystem (see Compatibility section for details)
• T-nut rail system on sides and bottom for easily adjustable hard-mounting
• Optional table clamp (sold separately), supports 5 to 60 mm table thickness

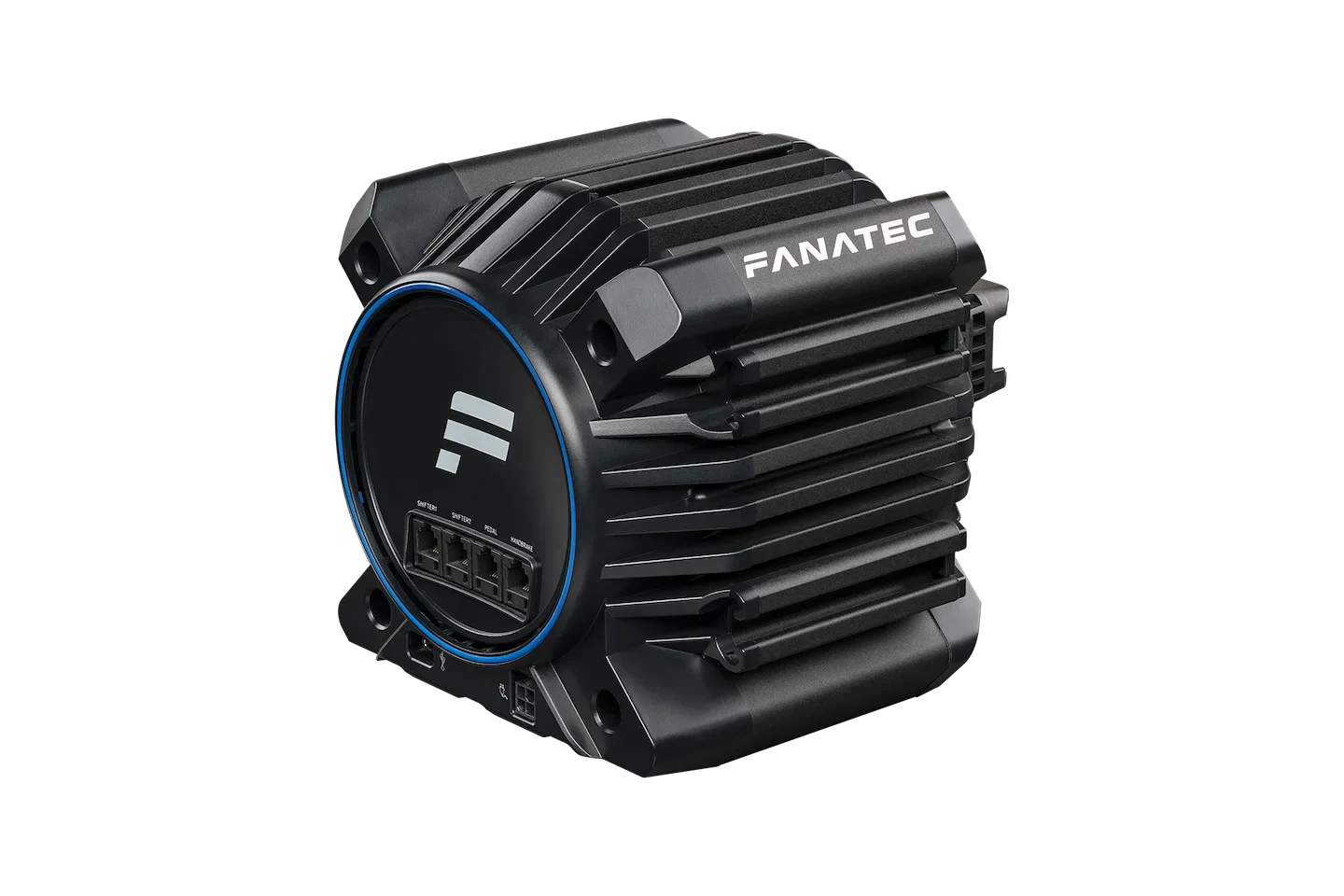

• Ports:

-Power supply

-USB-C to console / PC

-Shifter 1

-Shifter 2 (Sequential only)

-Pedals

-Handbrake

• Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

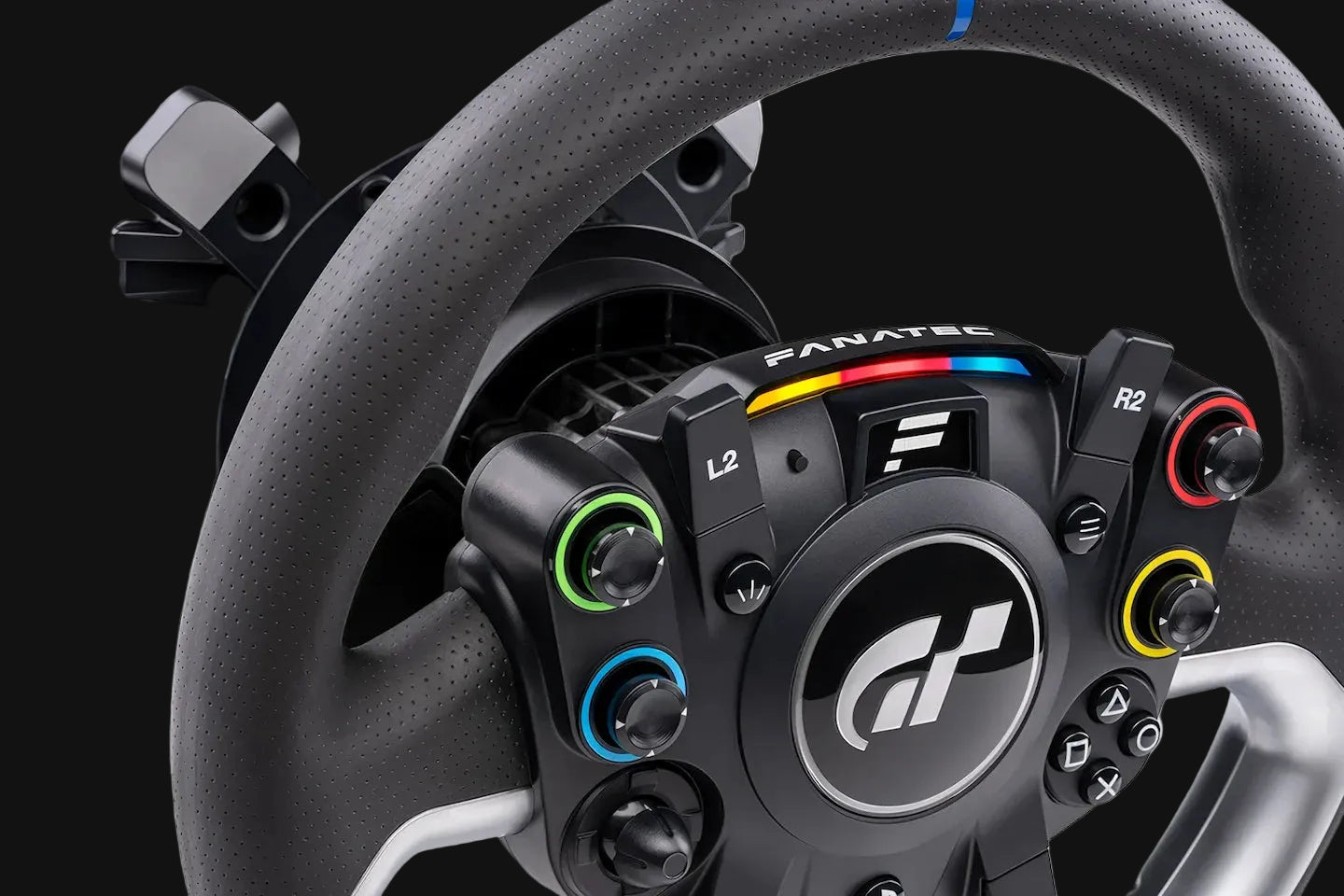

Steering wheel for Gran Turismo DD Pro:

• Designed by Polyphony Digital
• Tactile rubber grip with blue centre stripe
• Compact 280 mm diameter and light weight for crisp response
• Diffused RevLED strip (yellow, red, and blue LEDs)
• White OLED display for Tuning Menu access and telemetry output (where supported)
• 5-way directional stick for menu navigation
• Four additional 5-way directional sticks
• Ergonomic shifter paddles
• 11 buttons optimised for the PlayStation® interface
• Fiberglass-reinforced plastic construction
• QR2 Lite Wheel-Side preinstalled

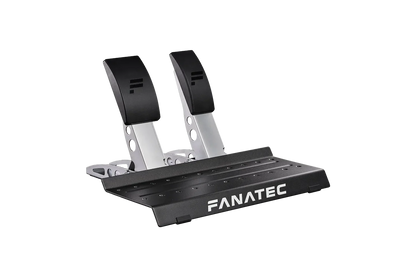

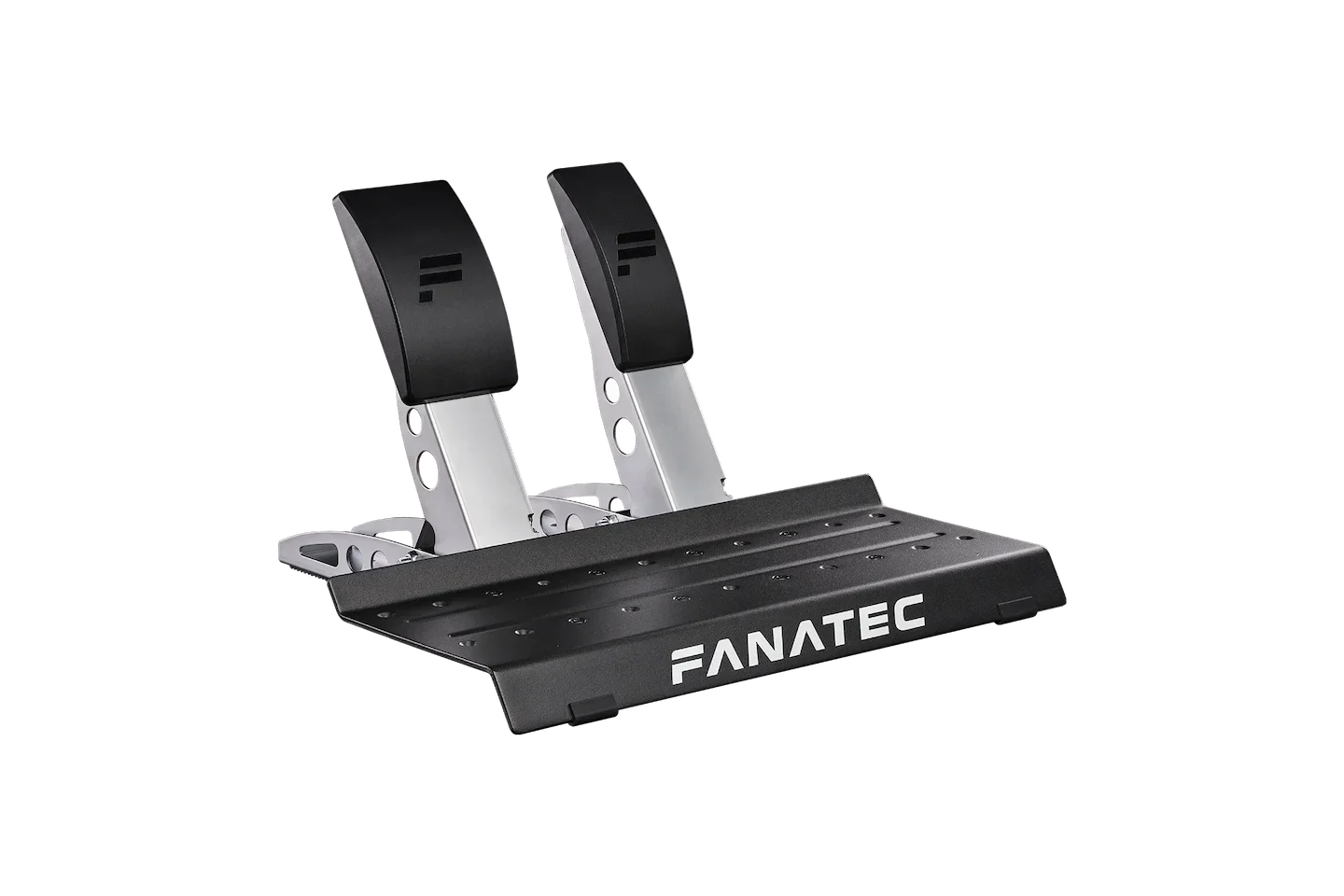

Pedals for Gran Turismo DD Pro:

• Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
• All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
• Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
• Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
• Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
• Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)

-CSL Pedals Clutch Kit provides a third pedal for the lowest price

-CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics

• Pedal position can be adjusted sideways along heel rest
• Height-adjustable pedal faces
• Modular design means inverted mounting to a rig is possible
• Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
• Pearl chrome plating on pedal bases and arms
• Black powder coating on heel rest
• Pedals connect directly to Gran Turismo DD Pro Wheel Base

Compatibility

The Gran Turismo DD Pro Wheel Base is compatible with:

• All Fanatec Podium Steering Wheels (depending on the quick release)
• All Fanatec ClubSport Steering Wheels (depending on the quick release)
• All Fanatec CSL Steering Wheels (depending on the quick release)
• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
• All Fanatec Shifters
• All Fanatec Handbrakes
• Boost Kit 180
• All Fanatec Cockpits
• CSL DD Table Clamp
• ClubSport Table Clamp V2
• Podium Mounting Brackets (the Gran Turismo DD Pro Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Please note: Compatibility with all peripherals is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

Platforms

• This product is compatible with PS5® and PS4® consoles.
• This product is compatible with PC on all major racing games.
• Other platforms: Compatibility with other platforms depends on the used steering wheel. For more information, please check the product page of the steering wheel you plan to use.

Please note: PC and other platform compatibility is tested by Fanatec, but not tested nor endorsed by Sony Interactive Entertainment Inc.

Special Notes

• Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.


What's Included?

• Gran Turismo DD Pro direct drive wheel base
• QR2 Lite Base-Side (Type-C) (preinstalled)
• Steering wheel for Gran Turismo DD Pro
• QR2 Lite Wheel-Side (preinstalled)
• Pedals for Gran Turismo DD Pro (two-pedal set)

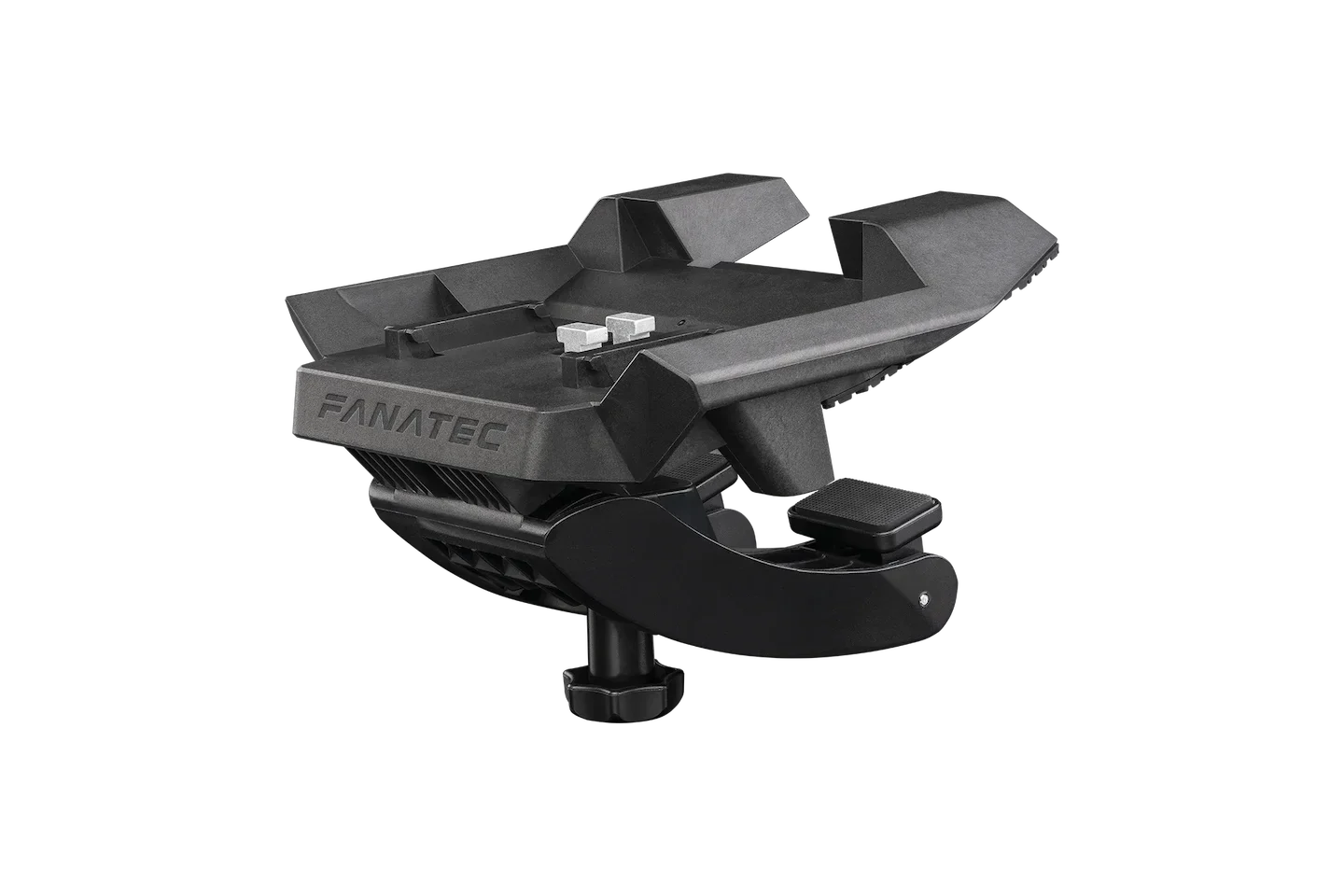

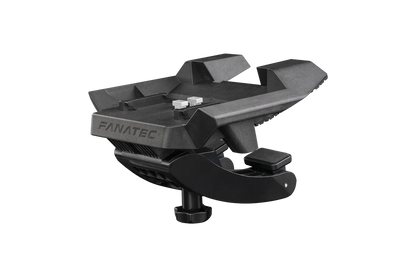

• Table clamp
• 4x T-nuts for rail mount system
• USB cable (Type-C to Type-A)
• RJ12 connection cable for pedals
• Pedal spacers for hard-mounting
• Torx Key
• Power Supply (5 Nm)
• Quick Guide
