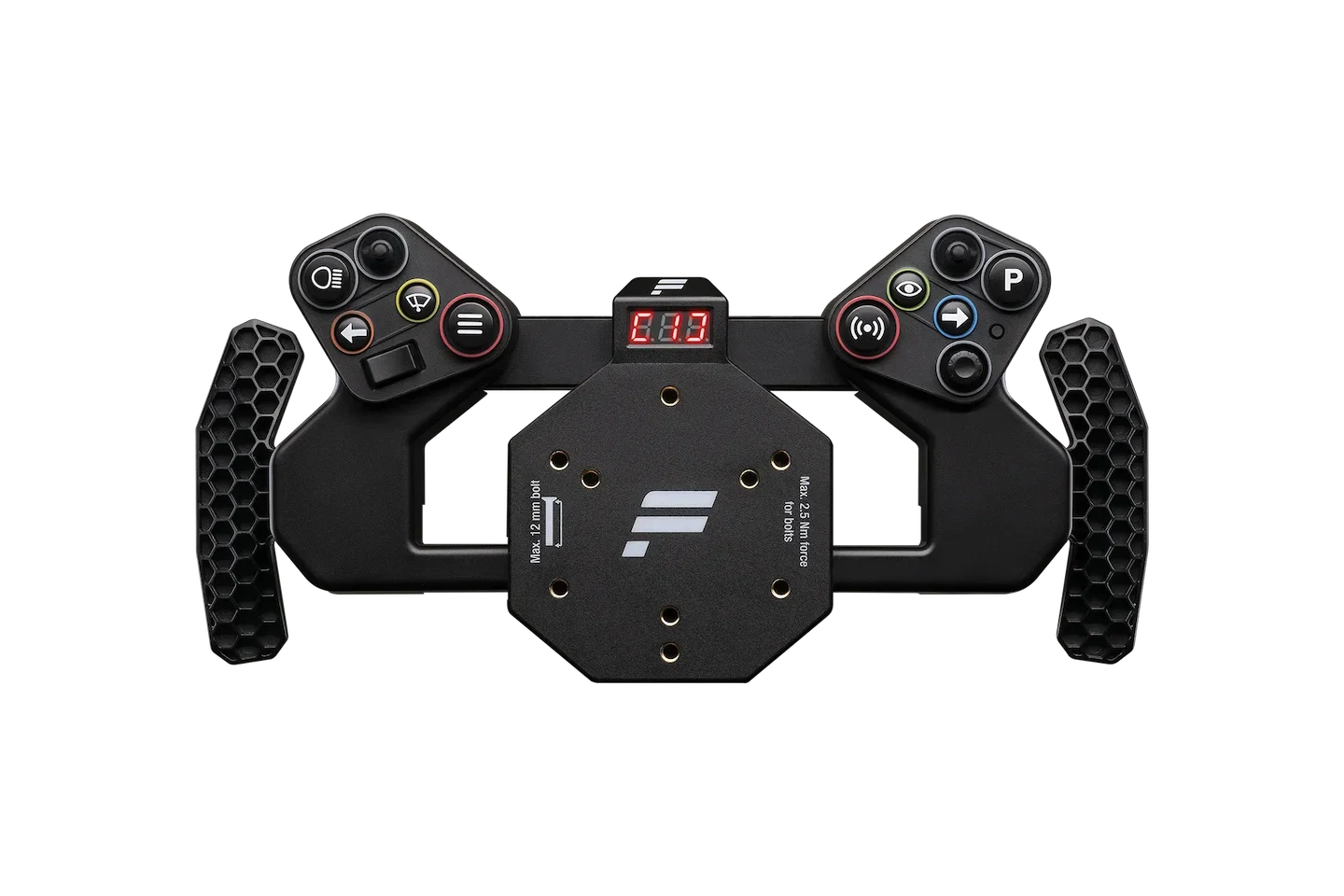

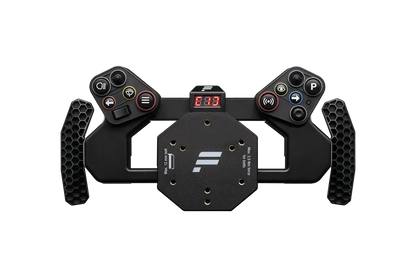

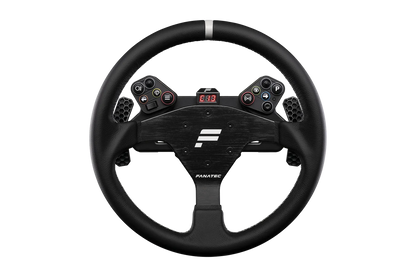

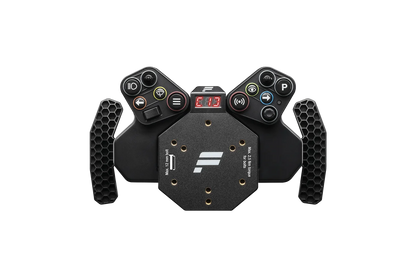

FANATEC CSL UNIVERSAL HUB V2

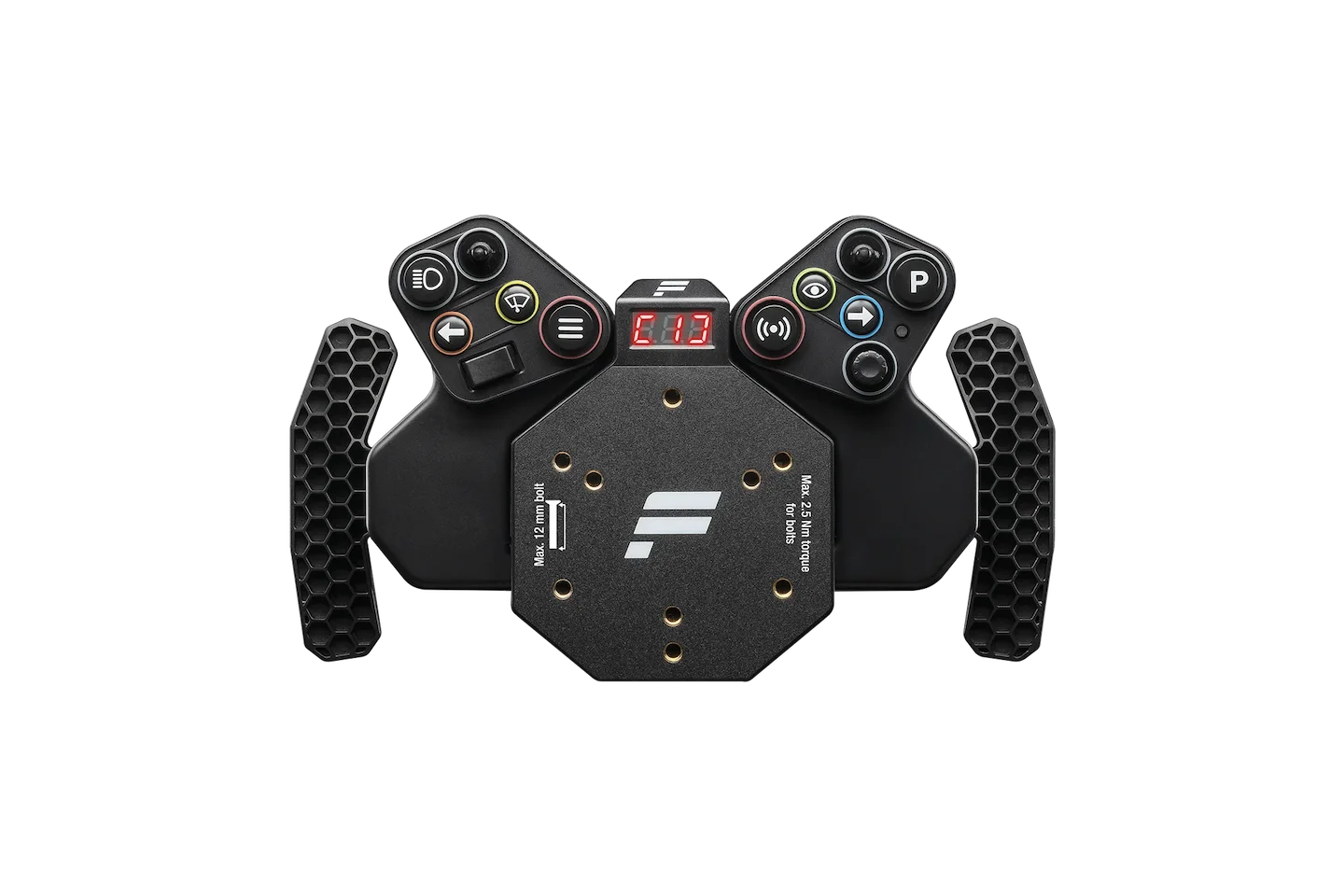

• Innovative expanding design allows the hub to adjust to many sizes of wheel rimLightweight, stepless slider mechanism expands by 60 mmShifter paddle width adjustable from 214 mm to 274 mm (at widest point)
• Metal bracing improves rigidity up to 23% compared to V1
• Ergonomic shifter paddles
• Integrated button islands (non-removable)
• Eight standard buttons with snap-dome activation
• 2-way rocker switch
• Two 2-way toggle switches
• Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
• Three-digit LED display for Tuning Menu functions and telemetry data from compatible games or third-party software
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Exchangeable quick release (selected before checkout)
• DataPort-C connector ready for future upgrades

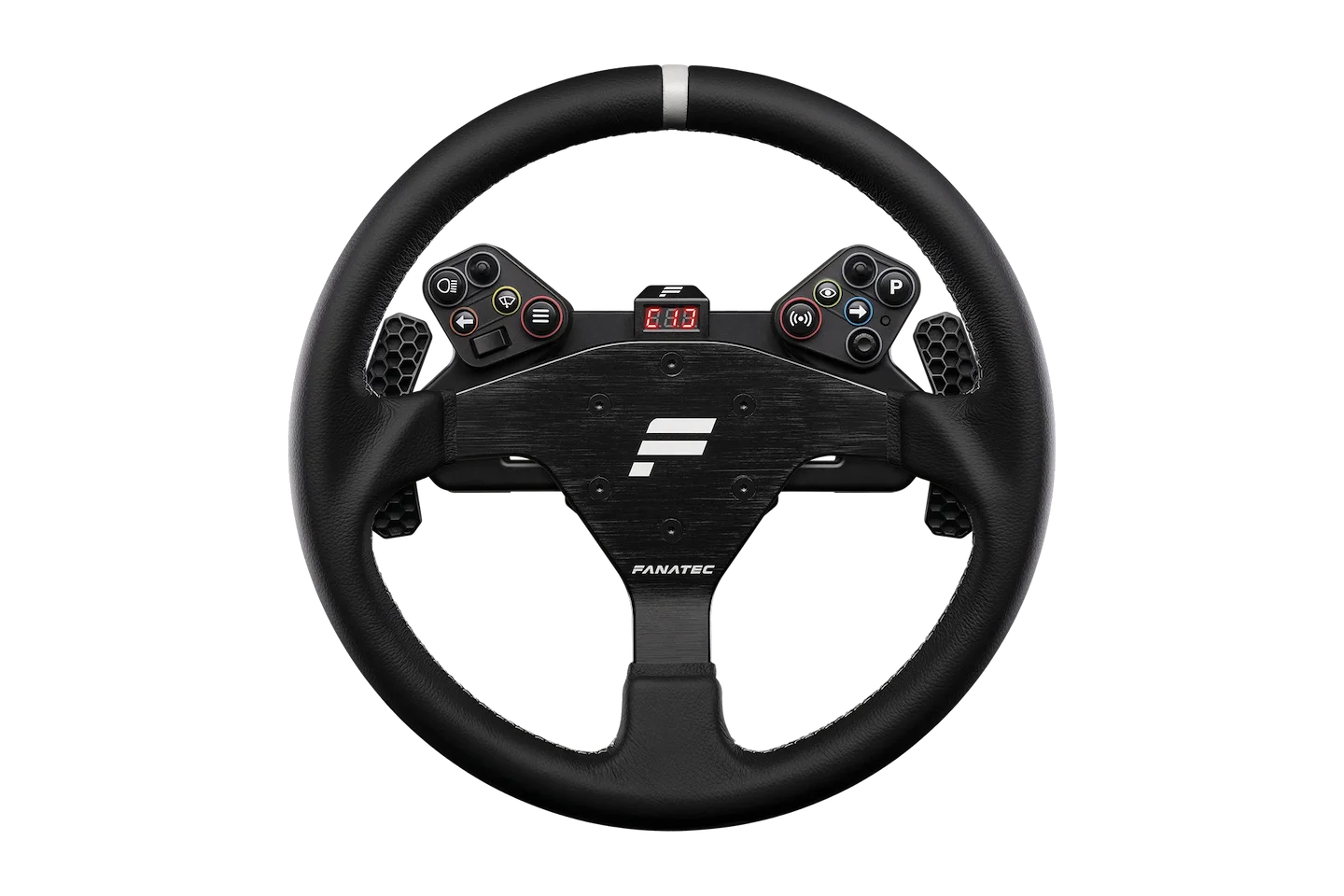

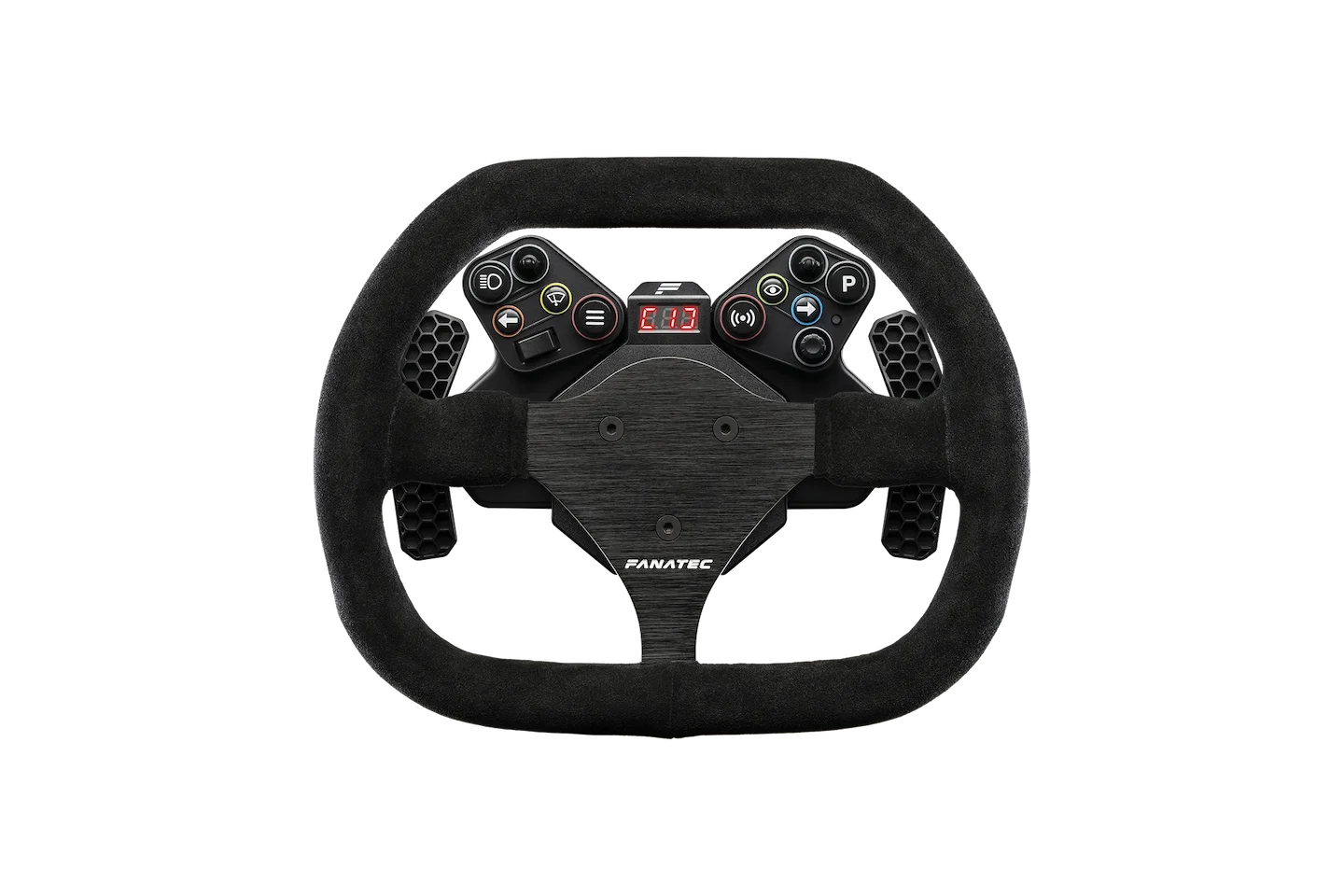

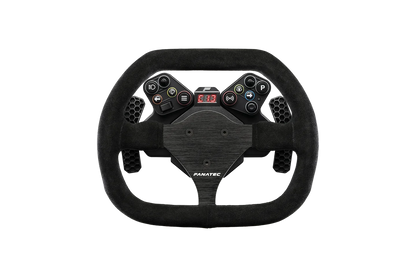

• Can be used with all Fanatec wheel rims and all third-party rims using the 6 x 70 mm or 3 x 50 mm bolt pattern (e.g. Sparco, MOMO, OMP)
• Allows the use of third-party steering wheels with USB cables on all compatible Fanatec bases (direct USB connectivity is not possible)

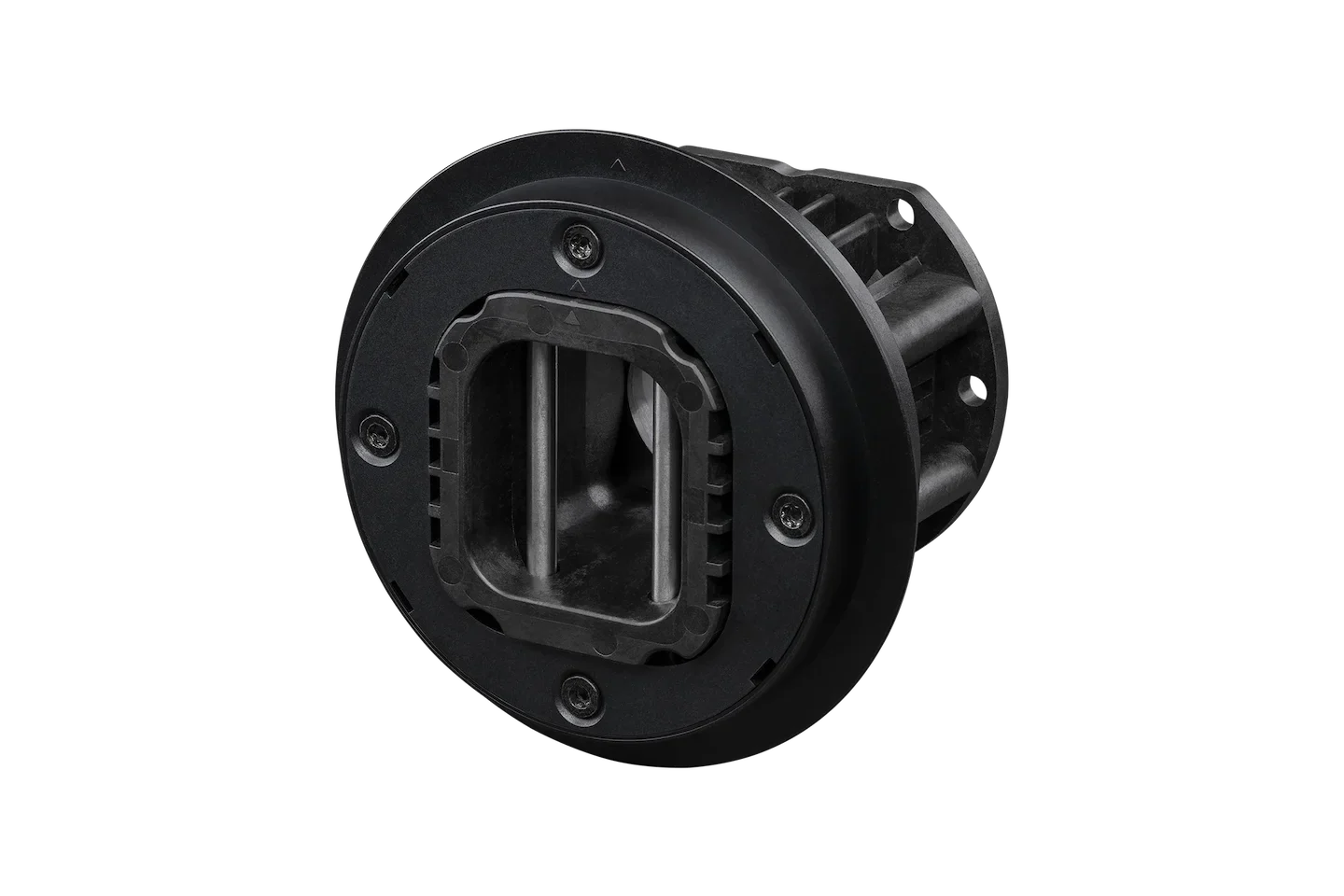

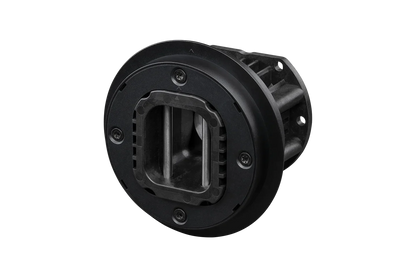

• QR2 Lite Wheel-Side
• Carbon fiber-reinforced composite
• Spring-loaded locking pin mechanism and tapered shape naturally ensures a tight fit
• Can be attached to Base without touching the sleeve mechanism
• Allows maximum torque on ClubSport DD and Podium DD bases

Compatibility

This product is compatible with the following bases (depending on the installed quick release):

• PODIUM Wheel Base DD1
• PODIUM Wheel Base DD2
• PODIUM Wheel Base DD1 PS4™
• ClubSport DD Wheel Base
• ClubSport DD+ Wheel Base
• ClubSport Wheel Base V2
• ClubSport Wheel Base V2.5
• CSL Elite Wheel Base
• CSL Elite Wheel Base V1.1
• CSL Elite Wheel Base + - officially licensed for PS4™
• CSL DD Wheel Base
• Gran Turismo DD Pro Wheel Base

This product is NOT compatible with the Podium Button Module Endurance.

• PC: this product is compatible with Windows PC.
• Xbox: this product is not compatible with Xbox systems.
• PlayStation: The functionality of this product on PS4 can be limited by the capabilities of the console (subject to firmware/OS changes and developer support). The full functionality can only be guaranteed on PC; this is also game-dependent. PlayStation 5: Check our platform compatibility page for more details.

Special Notes

• To operate this product, a compatible Fanatec Wheel Base (not included) is mandatory.
• Buttons and paddle shifters are not easily reached with larger, dished wheel rims. For example, the ClubSport Wheel Rim GT (320 mm, no dish) works well, but the Podium Wheel Rim NASCAR (350 mm, dished) does not.
• DataPort-C connector is not compatible with USB devices.
• This product has no torque limitation (firmware update may be necessary).

What's Included?

• CSL Universal Hub V2
• QR2 Wheel-side quick release
• 1x Allen screwdriver (3 mm)
• 1x Wrench (8 mm)
• Quick Guide
