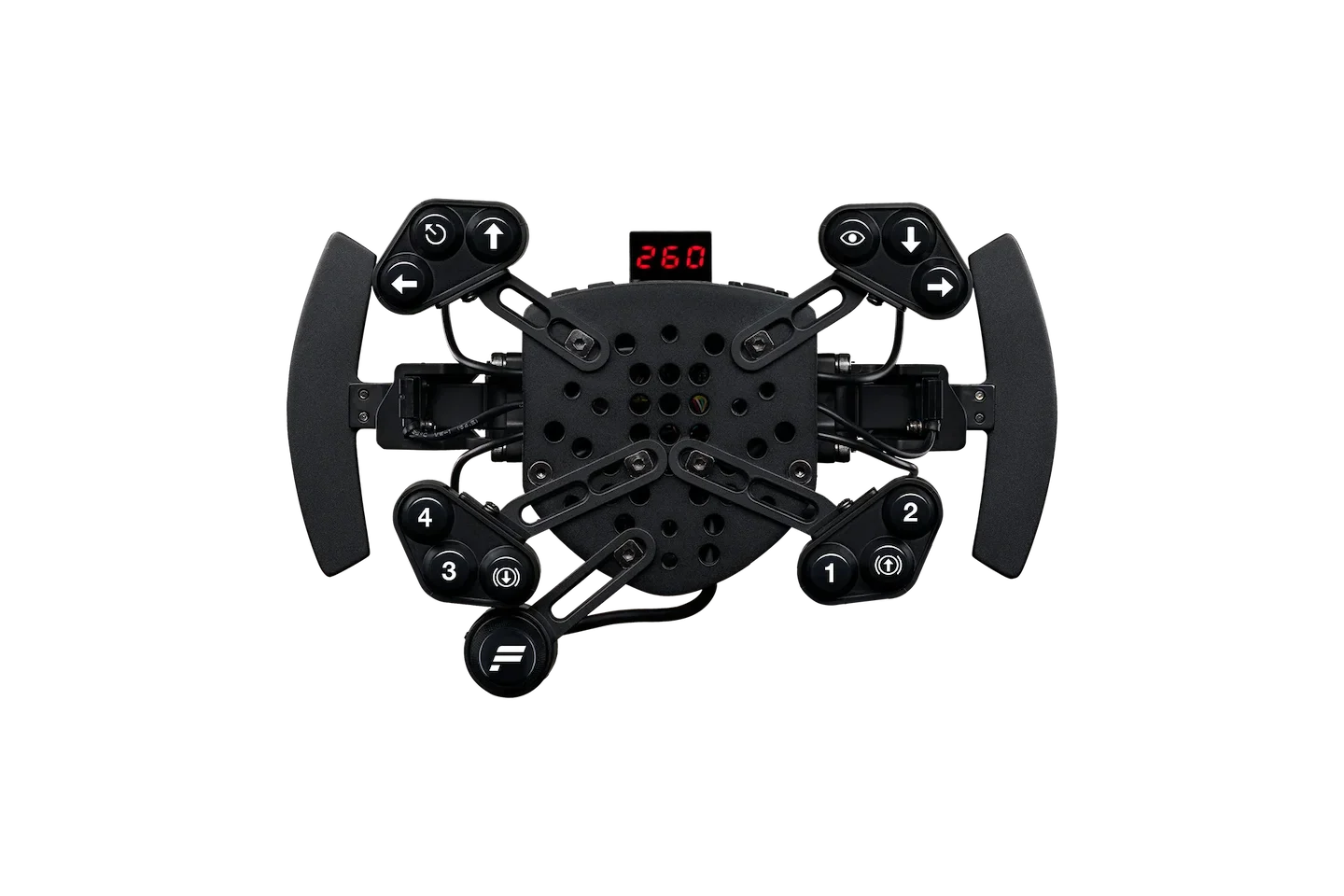

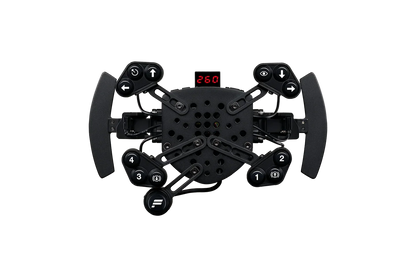

FANATEC CLUBSPORT UNIVERSAL HUB V2

• Can be used with all Fanatec wheel rims and all third-party rims using the 6 x 70 mm or 3 x 50 mm bolt pattern (e.g. Sparco, MOMO, OMP)
• Fully assembled and pre-configured to mount the Fanatec Wheel Rim GT (or similar)
• Improved electronics means hub is firmware-updatable
• ClubSport Magnetic Paddle Module preinstalled3 mm-thick, black anodised aluminium paddle platesPaddle module cage made of CNC machined aluminiumNeodymium magnetsTwo sets of paddle plates for small and large steering wheelsPaddle Plate Spacers to adjust to different steering wheel diametersAdditional spacers to adjust distance of shifter paddles to wheel rimPaddle module easily upgradable to Podium Advanced Paddle Module (optional)
• Detachable racing-style button caps
• 16 integrated buttons on top of the hub
• Four button clusters with three buttons each
• 7-way FunkySwitch™: left, right, up, and down directional inputs, push button, and rotary encoder functionality
• Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments

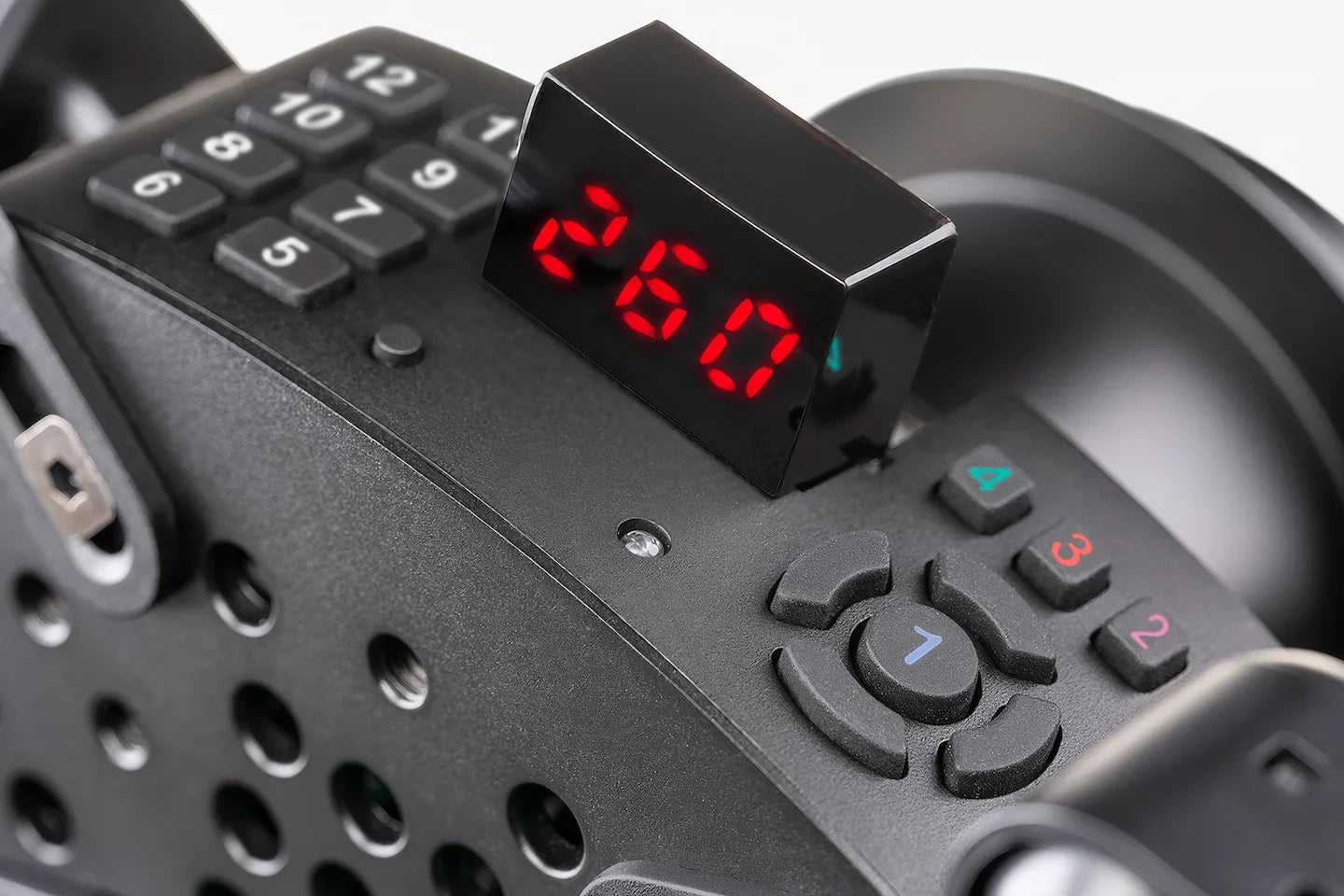

• Three-digit LED display for Tuning Menu functions and telemetry data from compatible games or third-party software. It can be installed in two positions: upright or flat
• Shifter paddle units, button clusters, and FunkySwitch™ can be removed to save weight
• DataPort-C connector for Podium Button Module Endurance (sold separately)
• Allows the use of third-party USB steering wheels on all compatible Fanatec bases (direct USB connectivity is not possible)
• An additional fifth button cluster can be attached (not included)

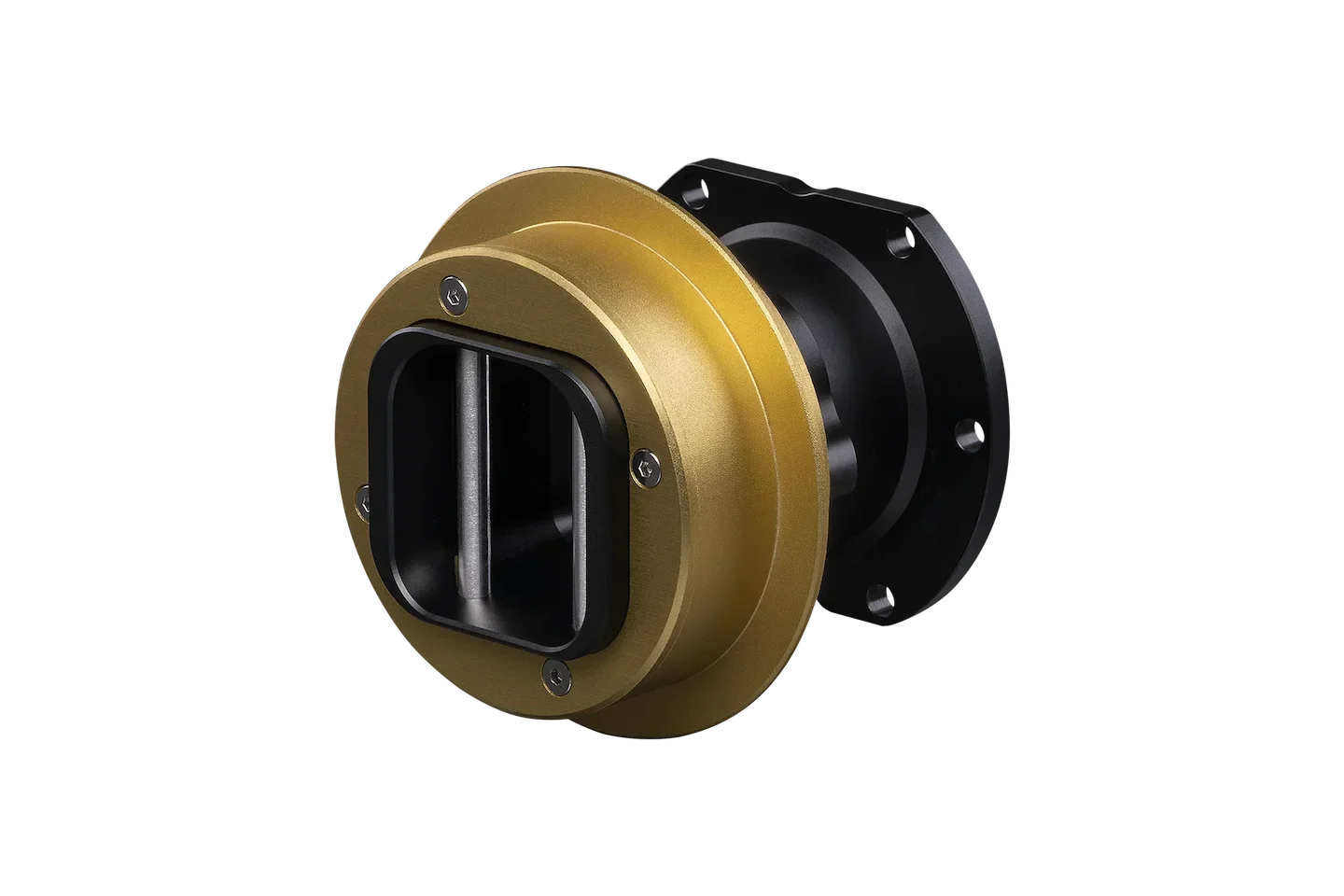

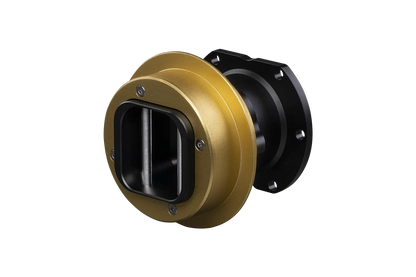

• QR2 Wheel-Side (packaged separately)

Compatibility

This product is only compatible with the following wheel bases:

• PODIUM Wheel Base DD1
• PODIUM Wheel Base DD2
• PODIUM Wheel Base DD1 PS4™
• ClubSport Wheel Base V2
• ClubSport Wheel Base V2.5
• CSL Elite Wheel Base
• CSL Elite Wheel Base V1.1
• CSL Elite Wheel Base + - officially licensed for PS4™
• CSL DD Wheel Base
• Gran Turismo DD Pro Wheel Base

This product is compatible with the Podium Button Module Endurance.

Accessories:

• Podium Advanced Paddle Module
• ClubSport Magnetic Paddle Module
• ClubSport Button Cluster Pack
• All Wheel Rims
• QR1 Wheel-Side
• PC: this product is compatible with Windows PC.
• Xbox: this product is not compatible with Xbox systems.
• PlayStation: The functionality of this product on PS4 can be limited by the capabilities of the console (subject to firmware/OS changes and developer support). The full functionality can only be guaranteed on PC; this is also game-dependent. PlayStation 5: Check our platform compatibility page for more details.

Special Notes

• In order to operate this product, a compatible Fanatec Wheel Base (not included) is mandatory!
• Buttons and paddle shifters are not easily reached with larger, dished wheel rims.
• DataPort-C connector is not compatible with USB devices.

What's Included

• ClubSport Universal Hub V2
• 4 x button clusters with three buttons each
• 2 x small levers and 2 x long levers
• 1 x FunkySwitch™
• LED display unit
• ClubSport Magnetic Paddle Module with aluminium paddle plates (pre-installed)
• Large and small paddles, bolts and spacers
• QR2 Wheel-Side (packaged separately)
• Safety pin for long-term storage
• Safety screw for permanent mount on wheel base
• Set of bolts
• Racing-style button caps
• Quick Guide
