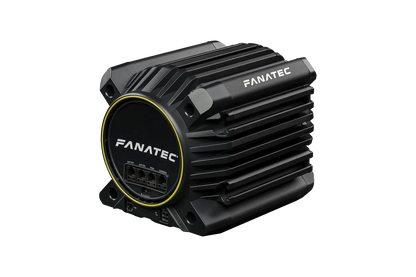

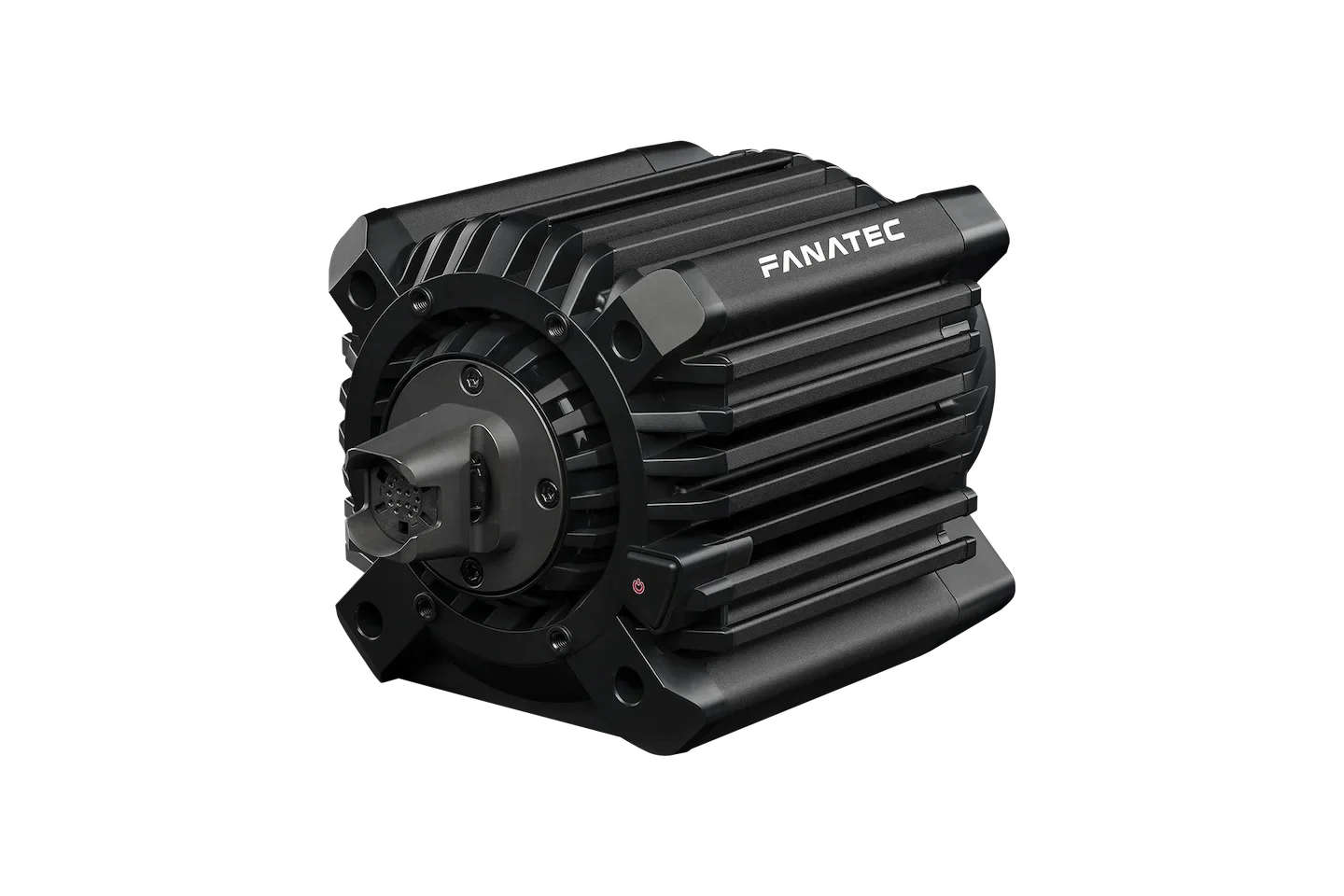

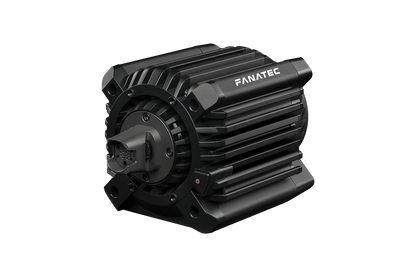

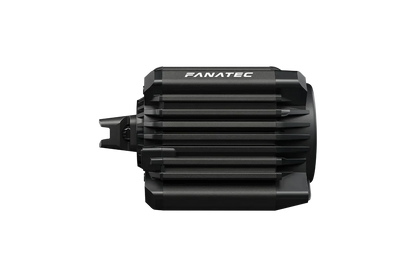

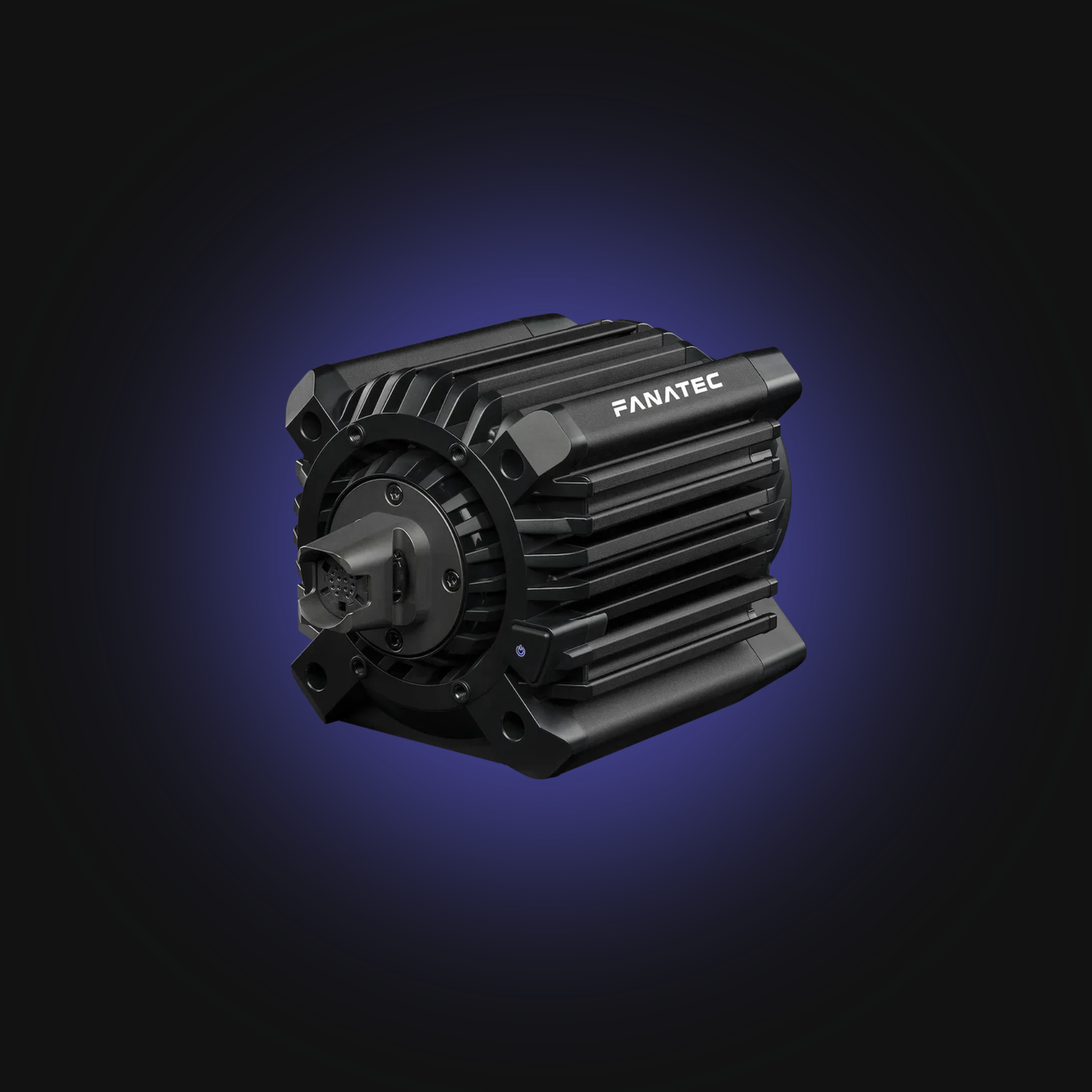

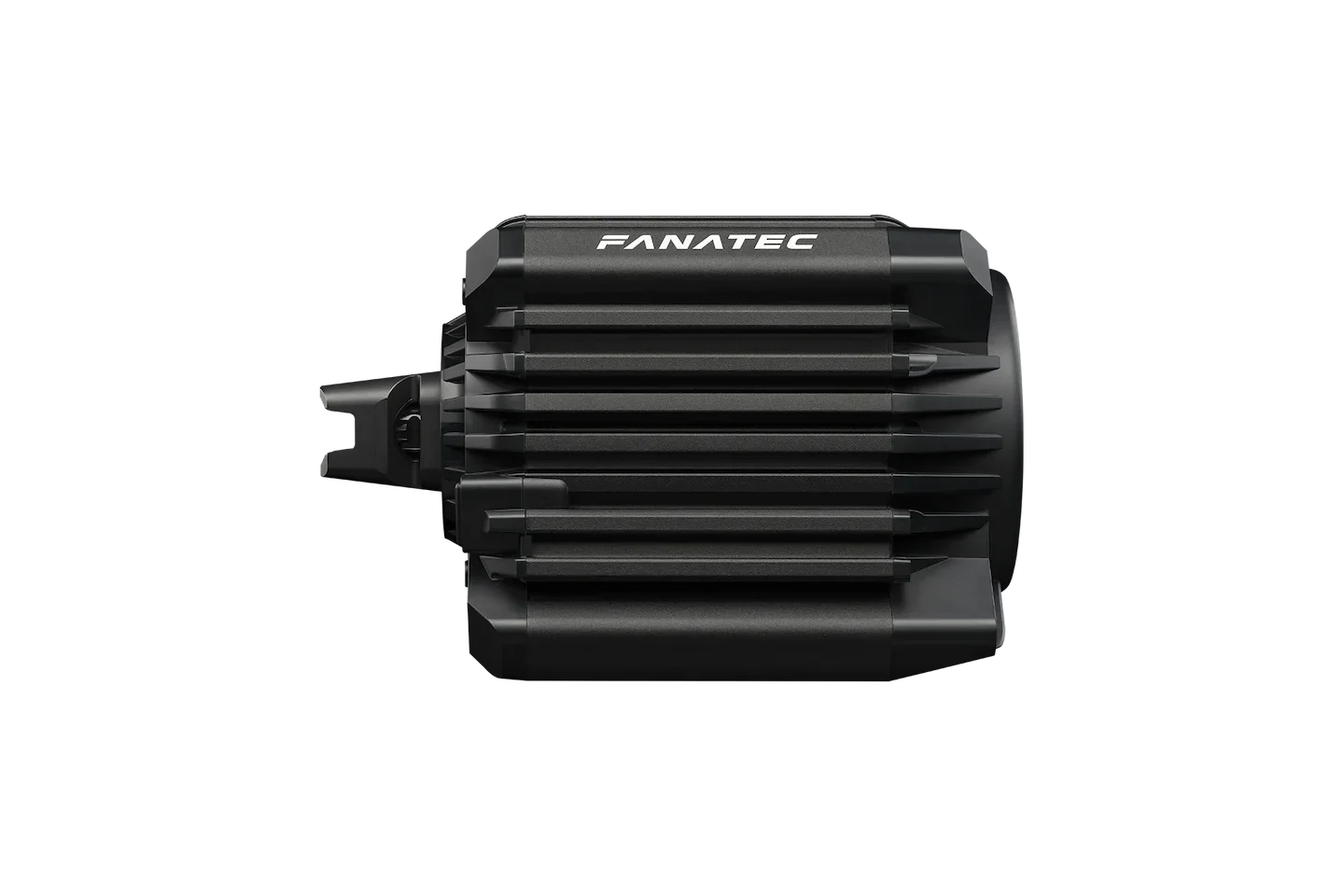

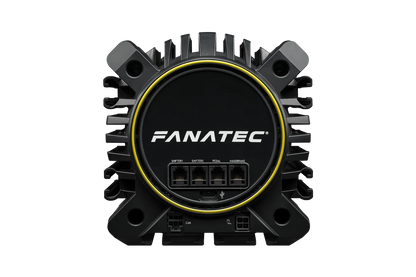

FANATEC CLUBSPORT DD WHEEL BASE (15 NM)

Direct Drive servo motor

• Custom-designed in Germany for the ClubSport DD specifically for sim racing
• 12 Nm consistent torque
• Optimised skew angle on rotor magnets reduces cogging torque
• Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness


FullForce technology

• New force feedback protocol developed for Fanatec Direct Drive
• Super low-latency detail effects through fine motor frequency control

Passively cooled Wheel Base

• Most thermally stable Wheel Base in its class
• Consistent performance under the most extreme conditions

QR2

• Wheel Base optimised for QR2 from the ground-up
• Electronics module integrated with shaft
• Diecast aluminium with CNC-machined finish
• Motorsport-derived quick release system
• Designed for Windows PC, can be used on Xbox when fitted with an Xbox licensed Steering Wheel

Full Fanatec SDK support ensures compatibility out of the box for all major racing games

Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

High-resolution (contactless) Hall-position-sensor

Rotation: 2520 degrees (electronically limited, adjustable)

Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)

Compatible with entire Fanatec ecosystem (see Compatibility section for details)

T-nut rail system on sides and bottom for easily adjustable hard-mounting

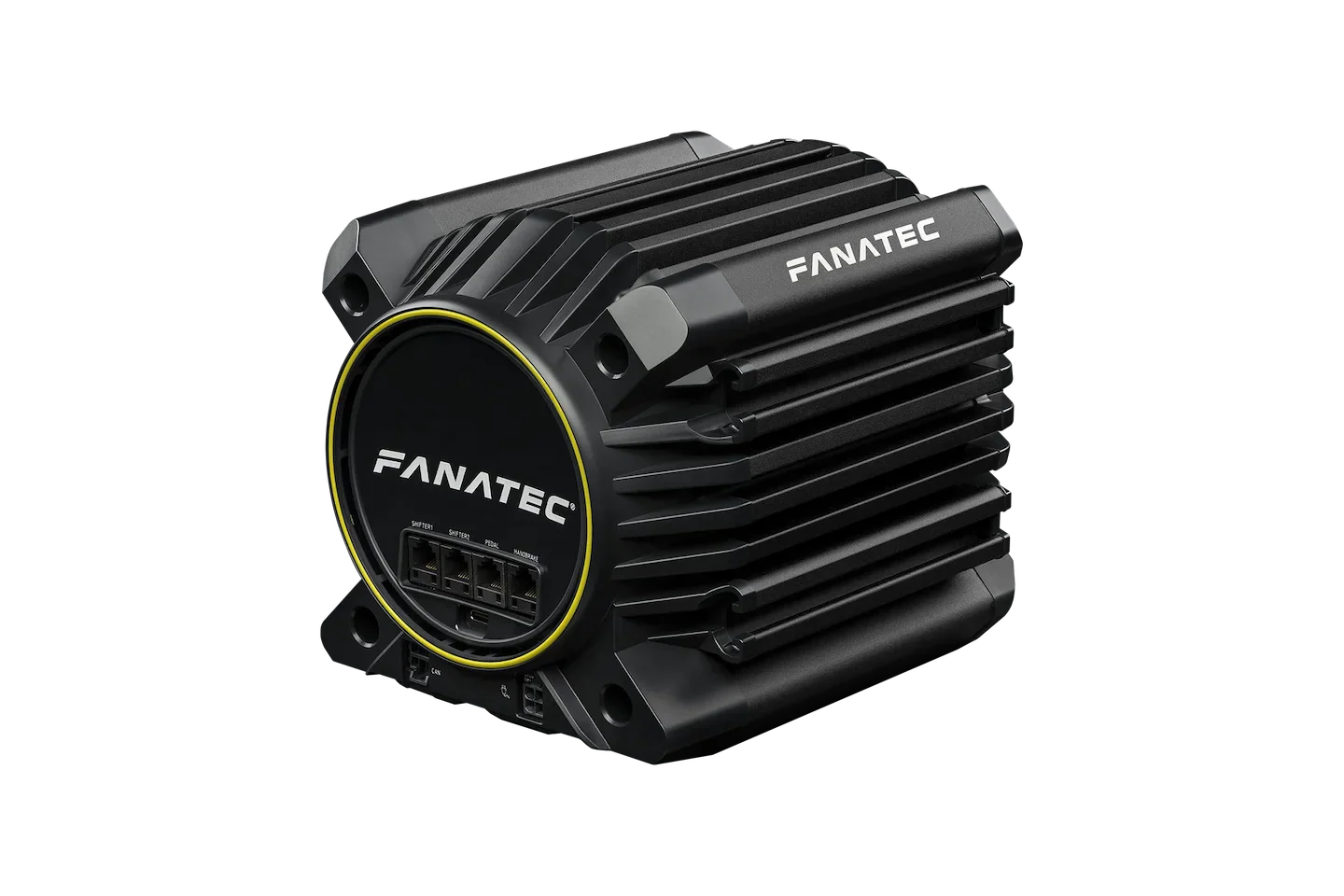

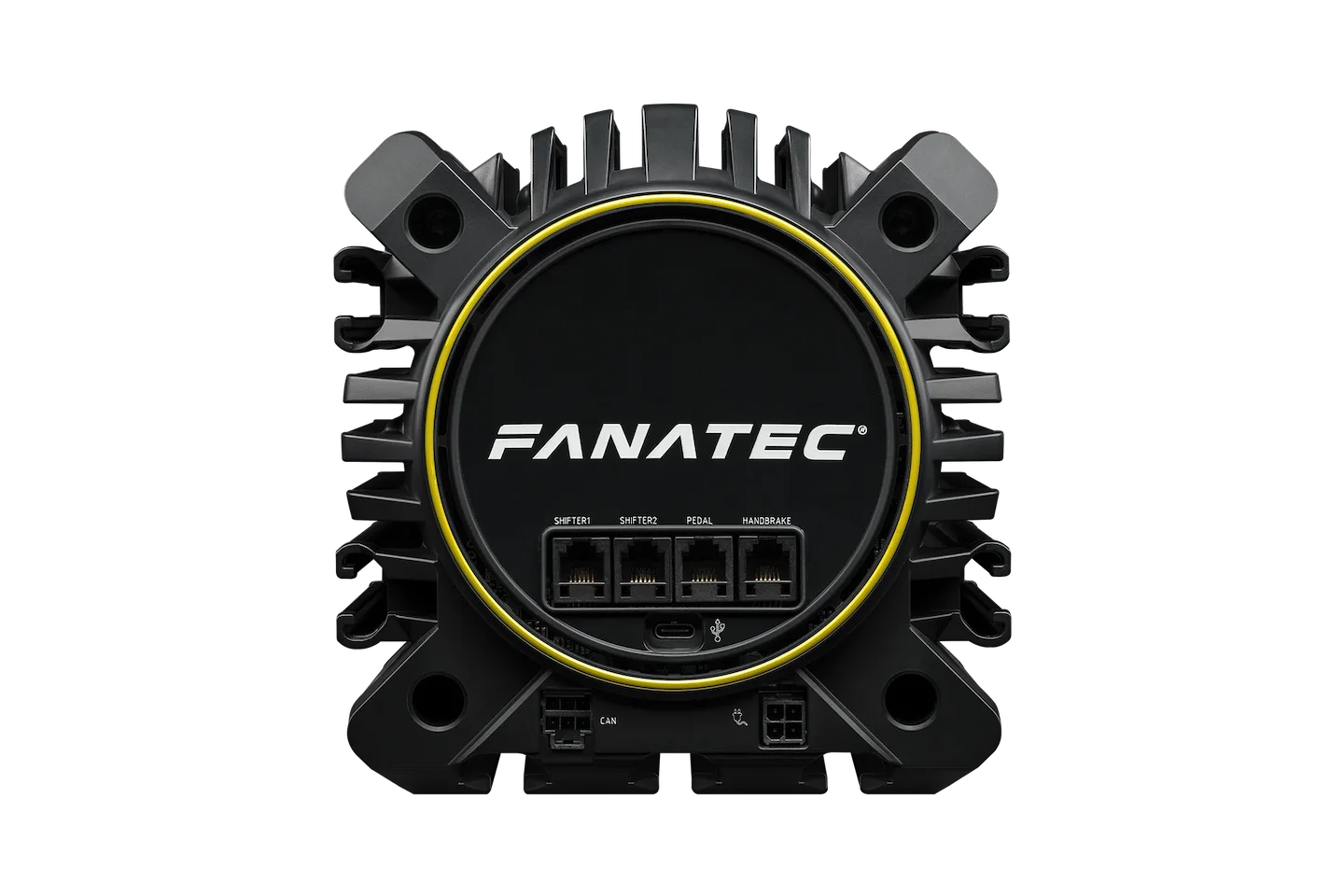

Ports:

• Power supply
• USB-C to PC / console
• Shifter 1
• Shifter 2 (Sequential only)
• Pedals
• Handbrake
• CAN (for future Fanatec peripherals)


Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

Compatibility

The ClubSport DD Wheel Base is compatible with:

• All Fanatec Steering Wheels (with QR2)
• All Fanatec Pedals (adapter cables might be required on pedals without RJ12 connection)
• ClubSport Shifter (all versions)
• ClubSport Handbrake
• All Fanatec Cockpits
• ClubSport DD Table Clamp
• ClubSport Table Clamp V2
• Podium Mounting Brackets (the ClubSport DD Wheel Base includes M6 T-nuts for side-mounting; the Podium Mounting Brackets require the use of M6 bolts and washers)

Note: ClubSport Static Shifter Paddles are not supported.

Platforms

• PC: This wheel base is compatible with PC when combined with a Fanatec Steering Wheel. Check the individual Steering Wheel product pages for Wheel Base compatibility.
• Xbox®: This wheel base becomes compatible with Xbox One® and Xbox Series X|S when used with any Fanatec Xbox-licensed steering wheel.
• PlayStation®: This product is not compatible with any PlayStation® console and cannot be upgraded to achieve compatibility.

What's Included?

• ClubSport DD Wheel Base
• QR2 Base-Side (Type-F) preinstalled
• Power Supply (regional)
• 4x T-nuts for rail mount system
• USB cable (Type-C to Type-A)
• Quick Guide

Special Notes

Not suitable for children. A Direct Drive Wheel Base is not a toy! The fast movements of the steering wheel and strong torque can be dangerous. Please read the safety instructions.
